The rotor assembly system is a highly automated solution for the efficient production of rotor assemblies. It combines process steps within a seamless one-piece-flow concept, enabling short cycle times with high precision. An adaptive logistics concept ensures smooth material flow, while integrated measuring and testing equipment guarantees continuous quality control. With complete process data acquisition, the system is fully prepared for Industry 4.0 and can be flexibly retooled within a product family – ideal for use in dynamic manufacturing environments with the highest demands on precision and efficiency.
Highlights
- Adaptable logistics concept for loading and unloading of parts
- Compact turret part buffer
- Energy efficiency by combining heat-related processes in direct sequence
- One-piece-flow concept
- Automatic SPC concept
- Retoolable within a product family
- Process data storage in Industry 4.0 quality
- Integrated into PLM strategy
- Concept cycle time between 75 and 105 seconds
Processes
- High-speed magnet joining < 1 s
- Shrink-fit press configuration
- Optional and controllable: heating of the lamination stack (contact heating combined with infrared heating) and cooling with liquid nitrogen
- Assembly and alignment of components
- Shrink-fitting or press-fitting of the shaft
- Contact, infrared, and tunnel heating, as well as continuous tunnel cooling
- Transfer molding
- Balancing
- Magnetizing
- Measurement of total magnetic flux and flux density
- Various dimensional and optical inspections

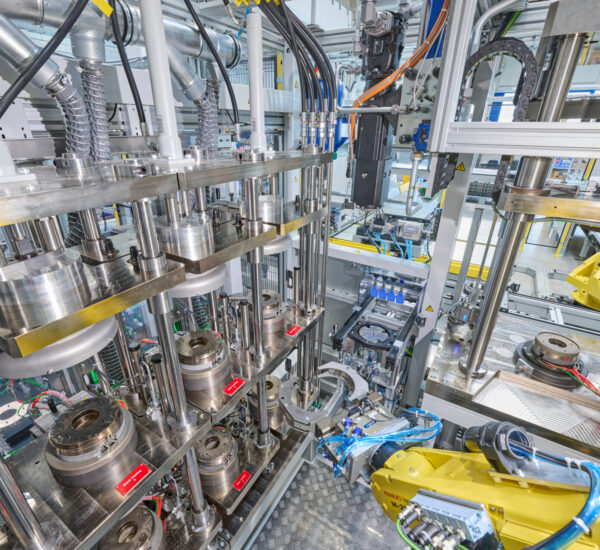

Heating, press-fitting, shrink-fitting

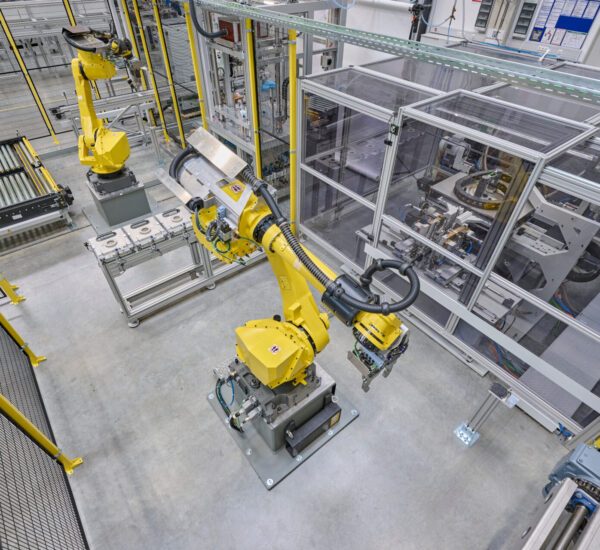

Top view – section 3

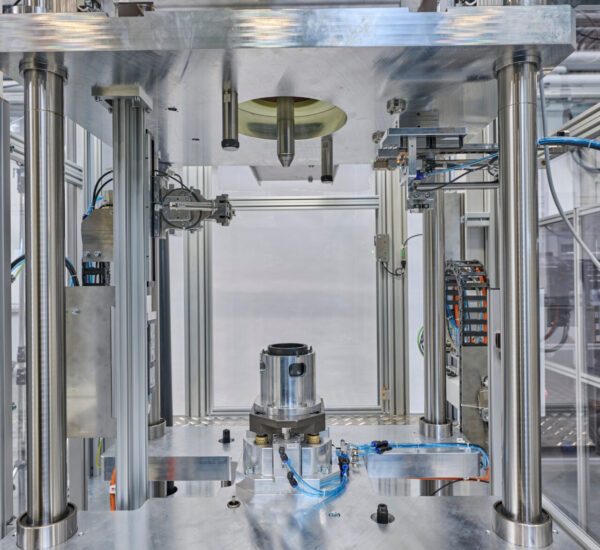

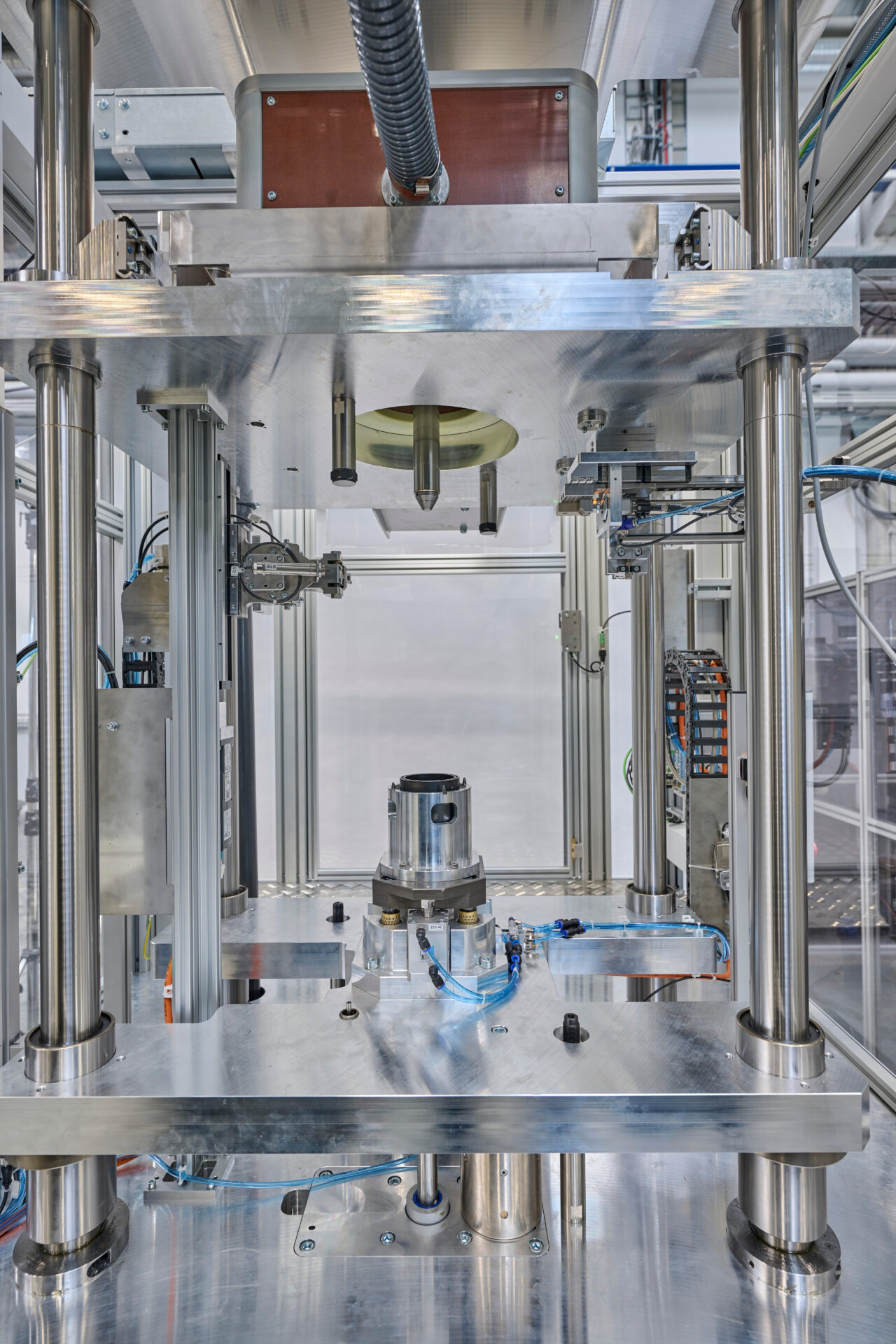

Magnetizing, measurement of magnetic flux
