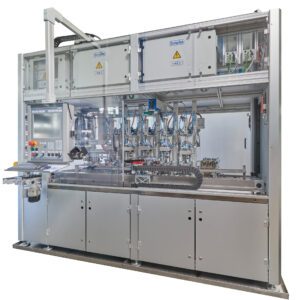

The test bench, including five stations, enables the measurement of valve seat leakage.
The stations are automatically loaded and unloaded via a conveyor interface to the
production line and a handling axis . High leakage injectors are classified and offloaded separately.
Technical Data
- Test medium: Exxsol D40
- Test pressure: 2…10 bar or max. 400 bar
- Measurement range: 0…15 μl/min
- Cycle time: 5 seconds / injector
Highlights
- High-precision leakage measurement
- Automatic onload and offload
- Highspeed distribution axis
- Fast signal acquisition with ethercat bus system
- Integrated injector actuation for flushing the cycle prior to
the test cycle - Datamatrix camera and RFID system for 100 % traceability
- Production data processing with database
- Touchscreen monitor for machine operation

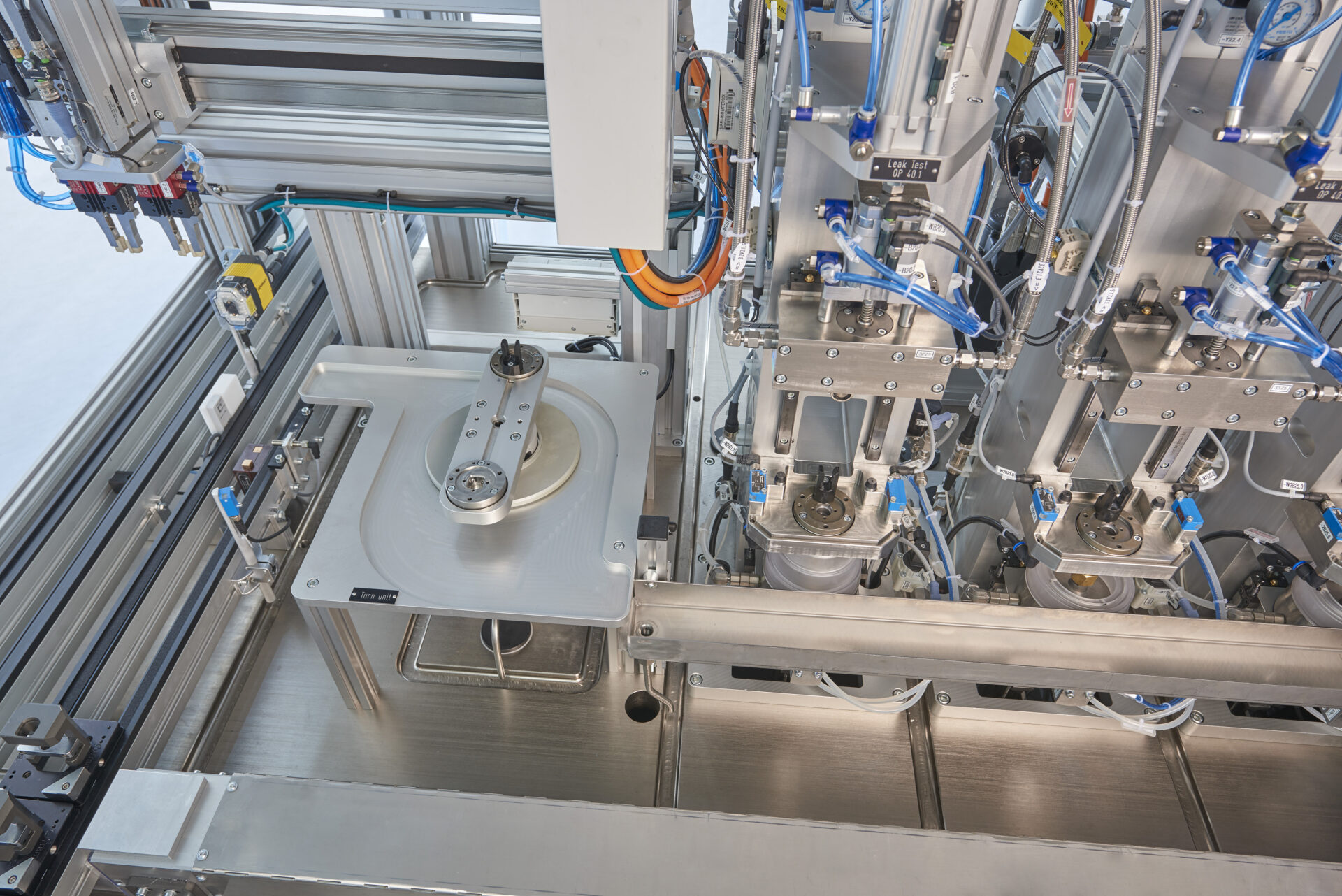

Handling axis

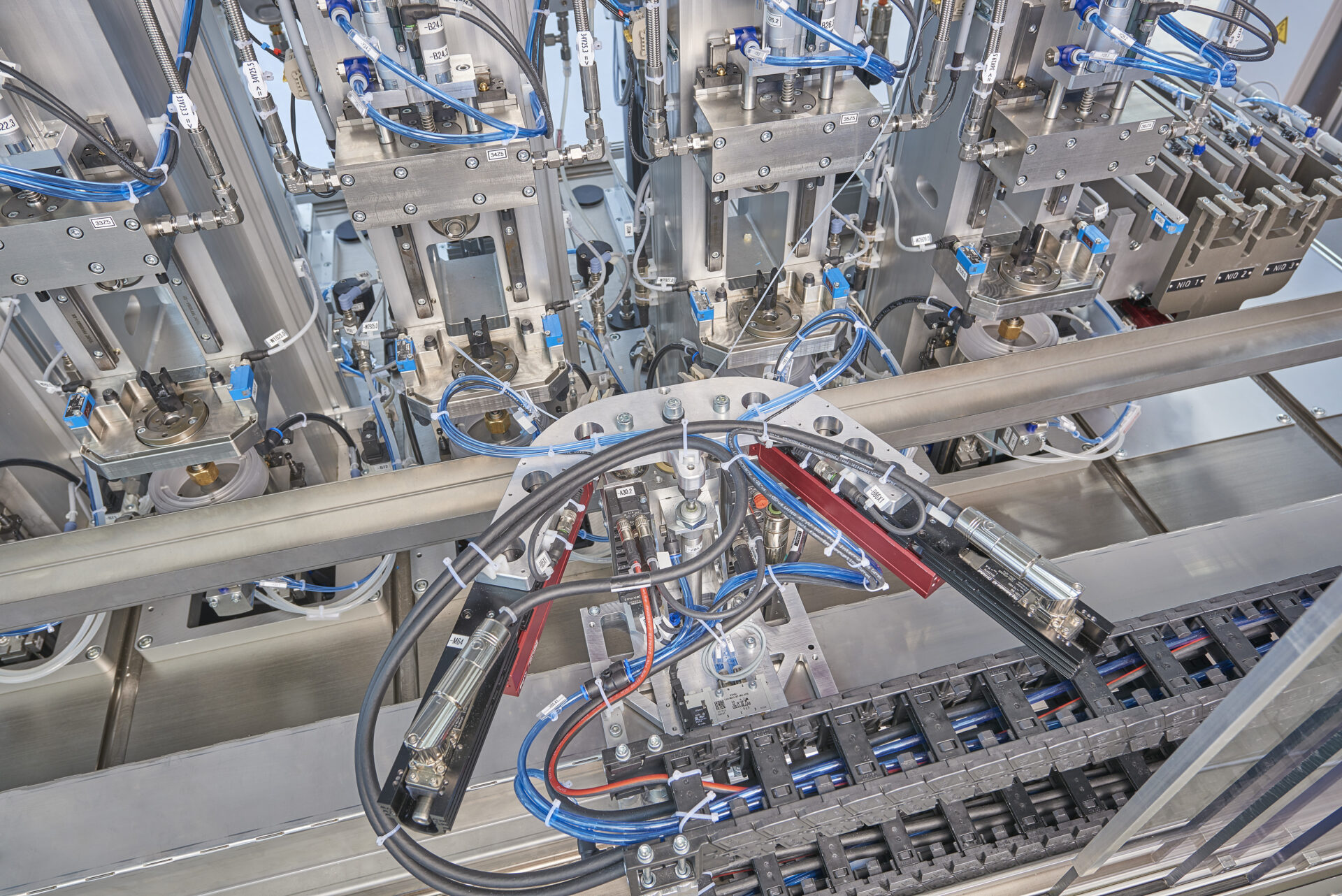

Stations
