Special-purpose Machinery
Assembly Line for Antenna modules
The assembly line is used for fully automatic assembly and testing of antenna modules in 5s cycle time. Different types of antennas can be prepared and processed. The components are loaded into the system by…
Highlights
- Cycle time: 5 sec
- Compact design
Combination of various processes
Skip gallery slider

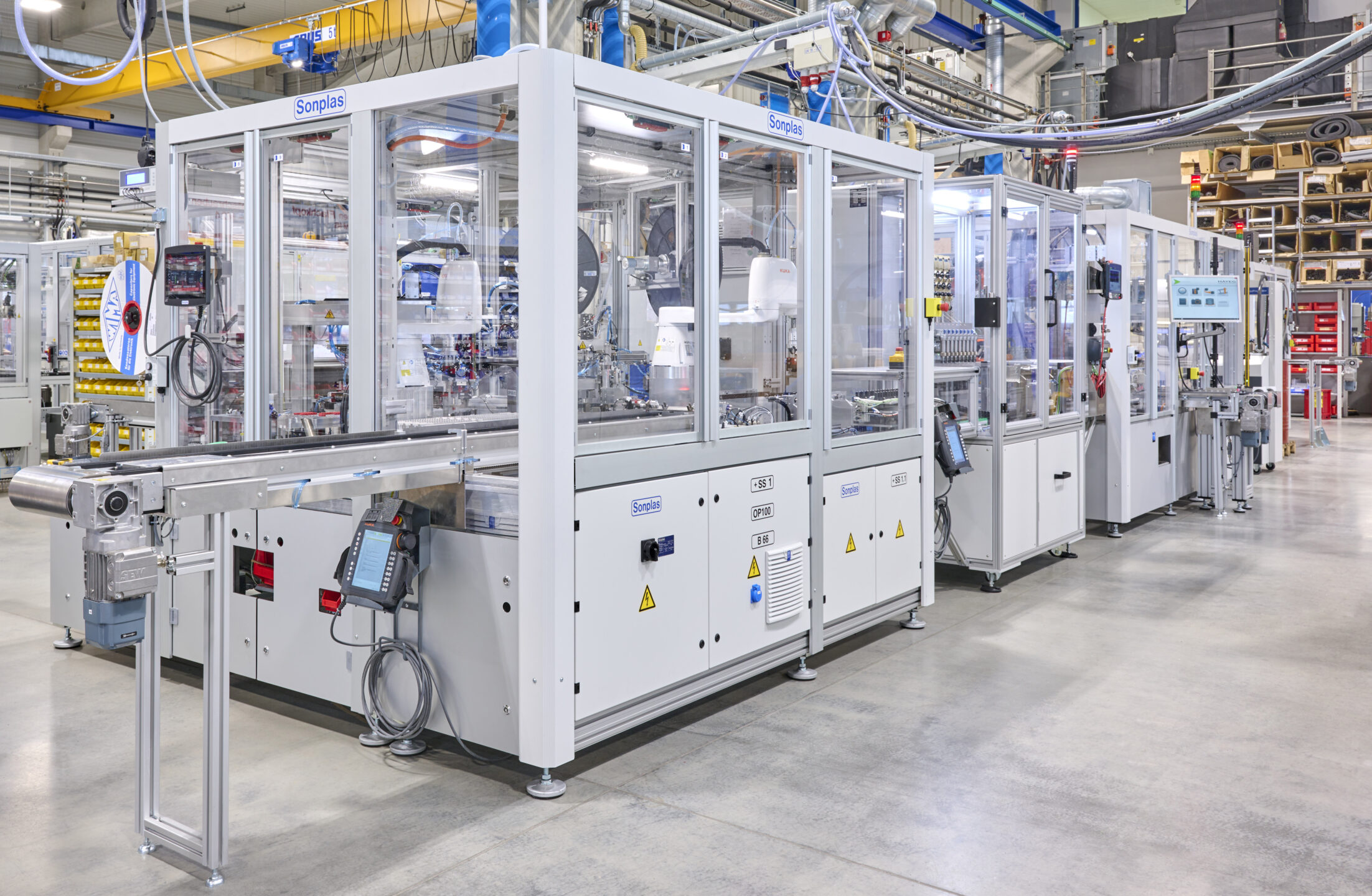

Left: Module pre-assembly

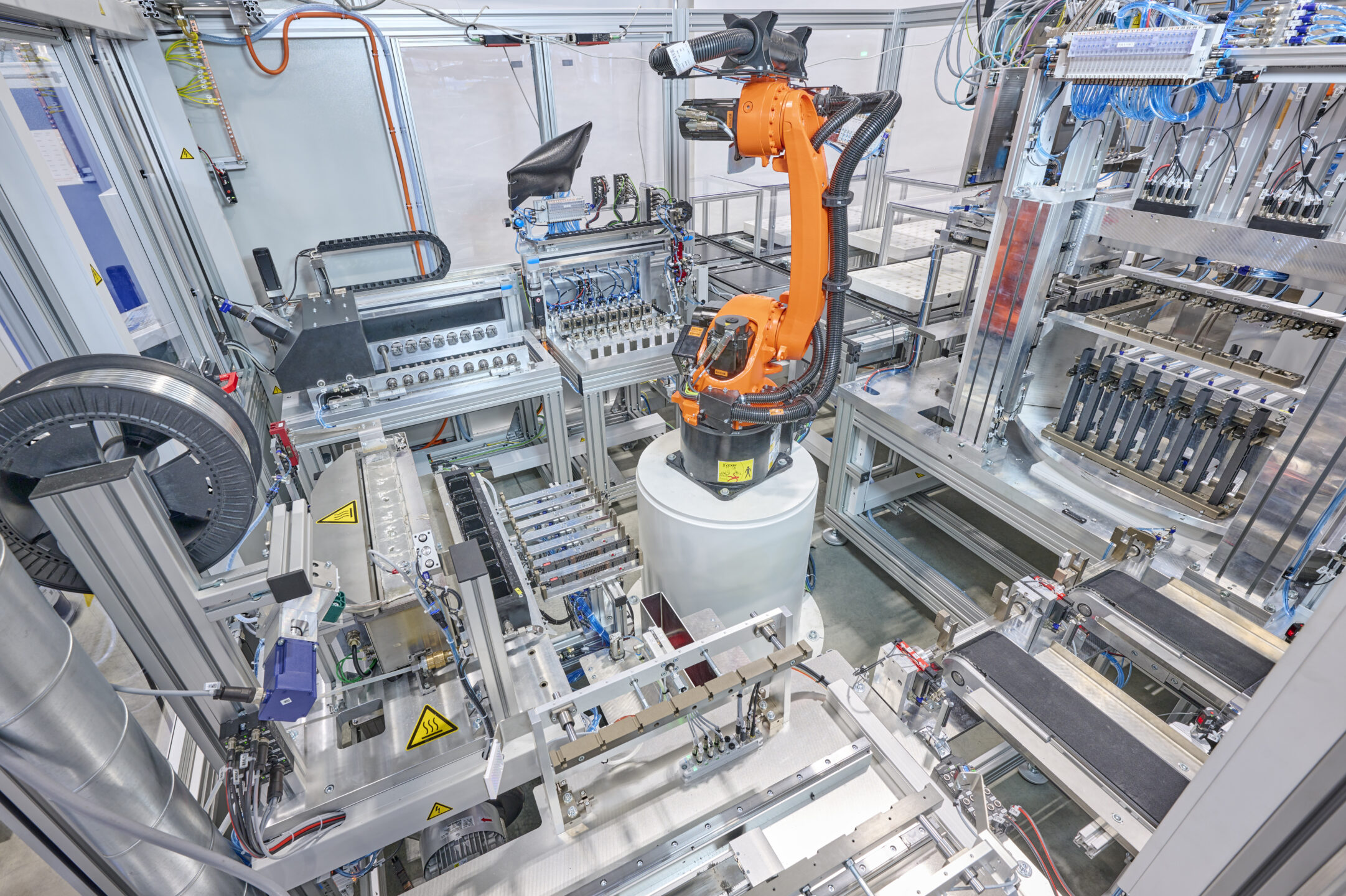

Center: Final assembly

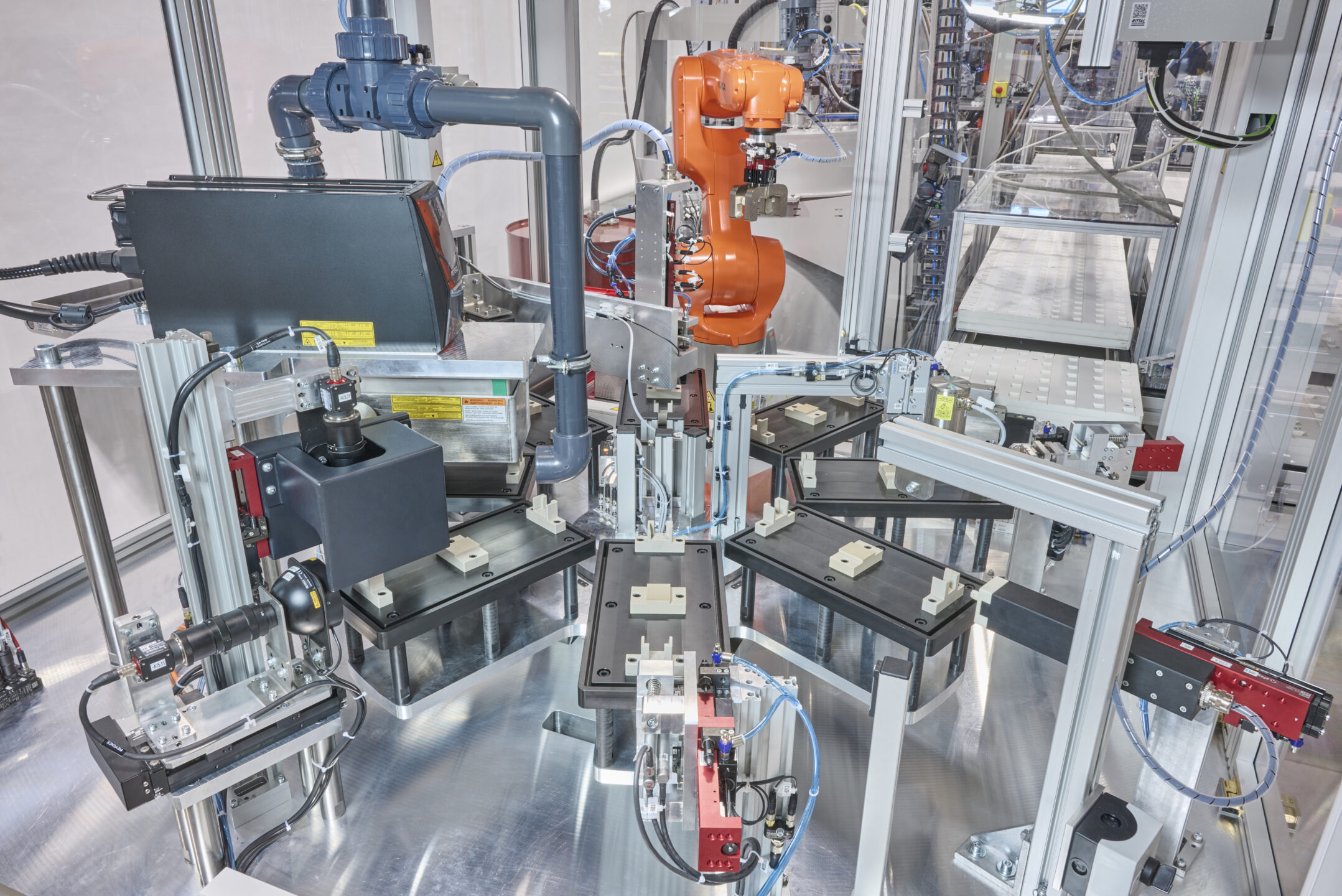

Right: final inspection of discharge
Processes
- Dispensing (1K and 2K)
- Pin assembly
- Pin control
- Assembly processes (joining, pressing,..)
- EOL tests
- Laser marking
- AOI brazing
- Immersion brazing
- Magnet assembly
- Leak test
Do you have any questions? Contact us.
