Rotor
Servo-electric Press
With the servo-electric press, it is possible to carry out joining processes on various products, rotors, inverters, batteries, and fuel cells, among others. With a force of up to 100 kN and a stroke of…
Highlights
- Self-commissioning by customers (Plug and Play)
- Adjustment of the support plate is supported by the press
- Extension of the press drive after transport is supported by
the press - Integration into production lines is possible
- Operation with the own computer (no external hardware
required) or Sonplas computer
Skip gallery slider

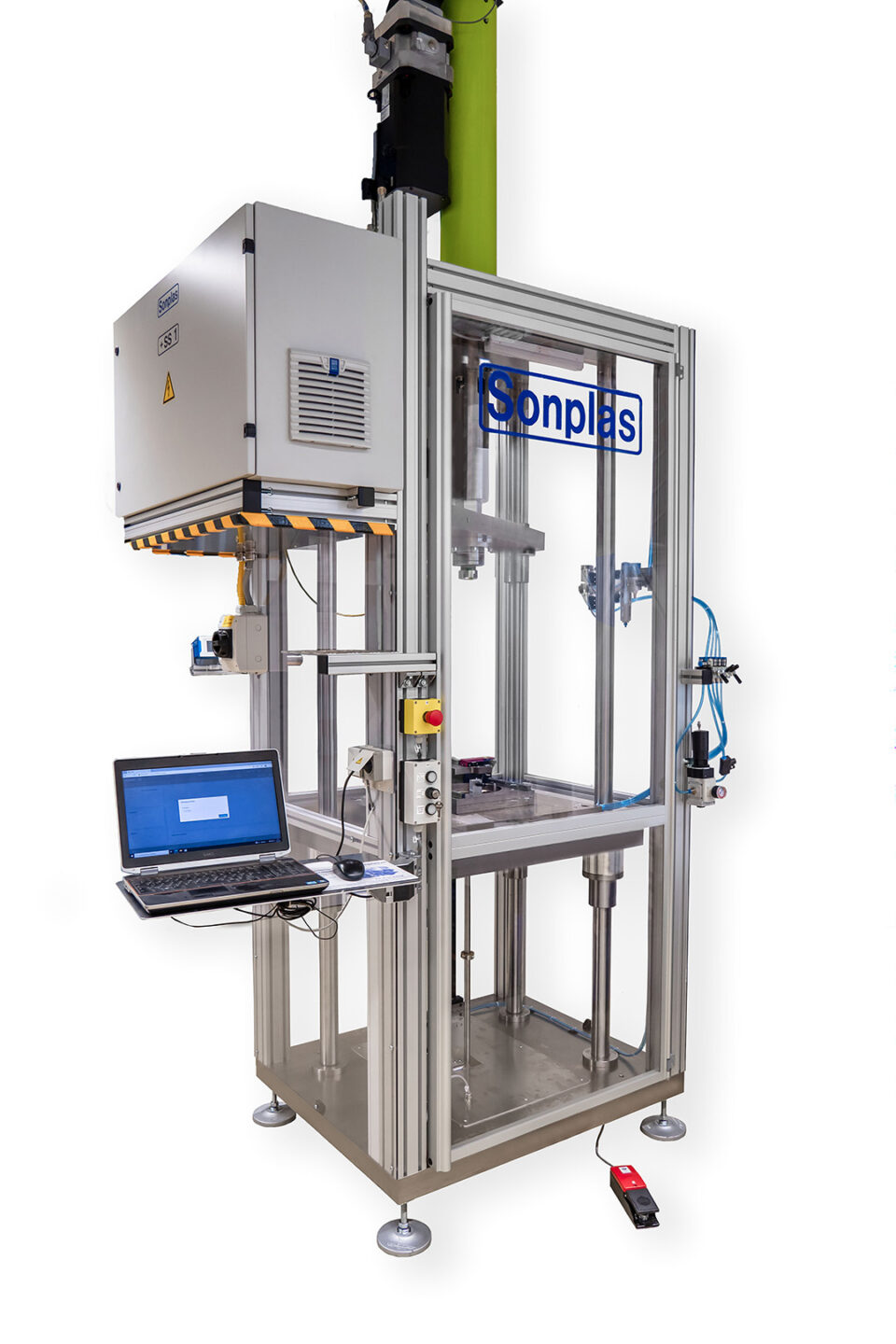

Left: Press with customers’ laptop

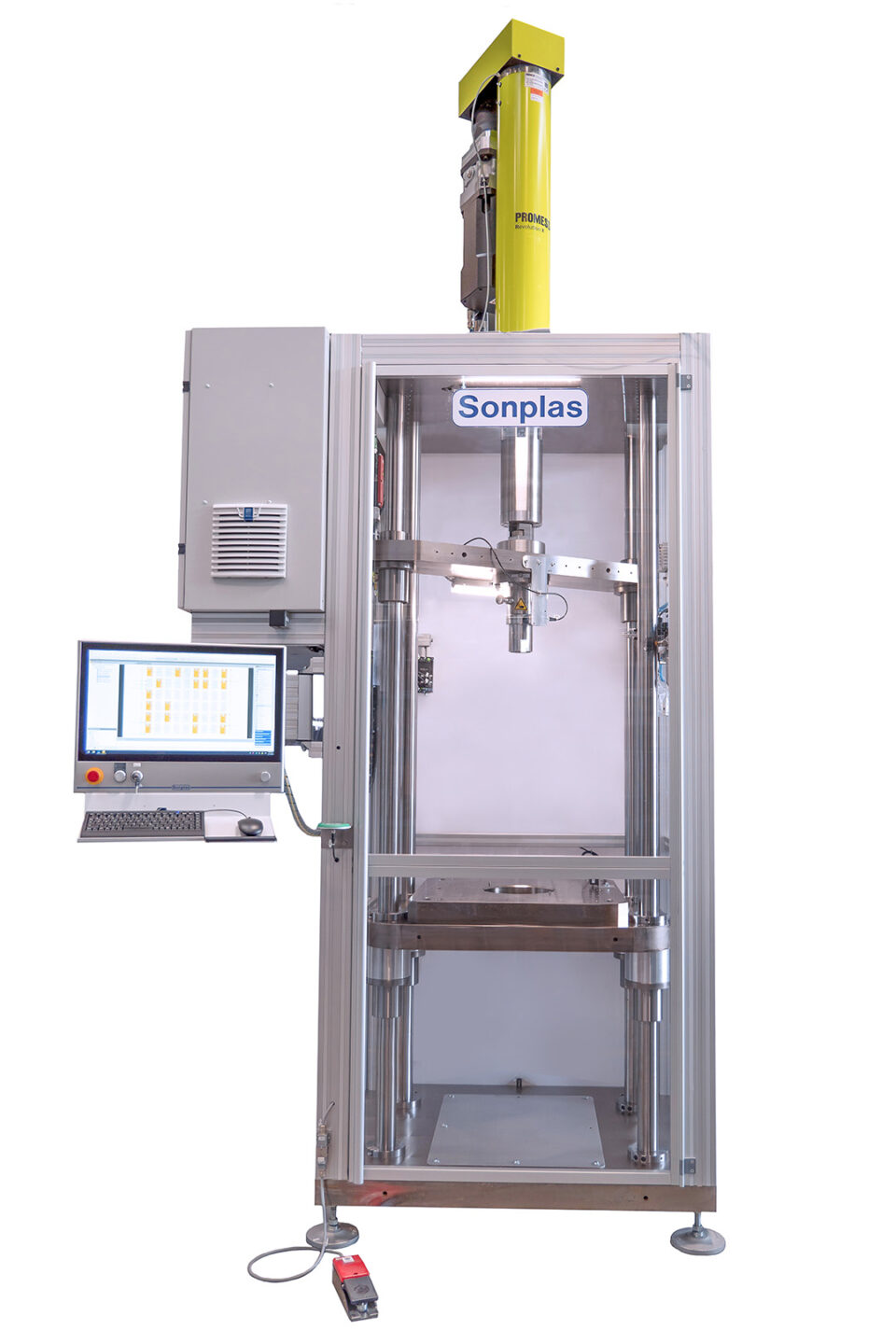

Right: Advanced option with Sonplas computer and software
Technical data
- Force variants: 30, 60, 100 kN
- Press stroke: 750 mm
- Max. component size: approx. 675x675x1500 mm (LxWxH)
- Modern web interface application
- Flexible automatic operation and uninterrupted switching to special operating modes:
• SOS – Safe operating stop (e.g., for bolting under load)
• SLS – Safely limited speed (e.g., for teaching) - Dimensions:
• approx. 1050×1500 mm (LxW)
• 3725 mm (H)
• 2750 mm (H) with reduction in stroke/component size
Options:
- External force sensor directly at the drive or in the tool
- Force range switching
- Press tools or fixtures with actuators
- R&D support for process development
- Sonplas computer with pre-installed software
