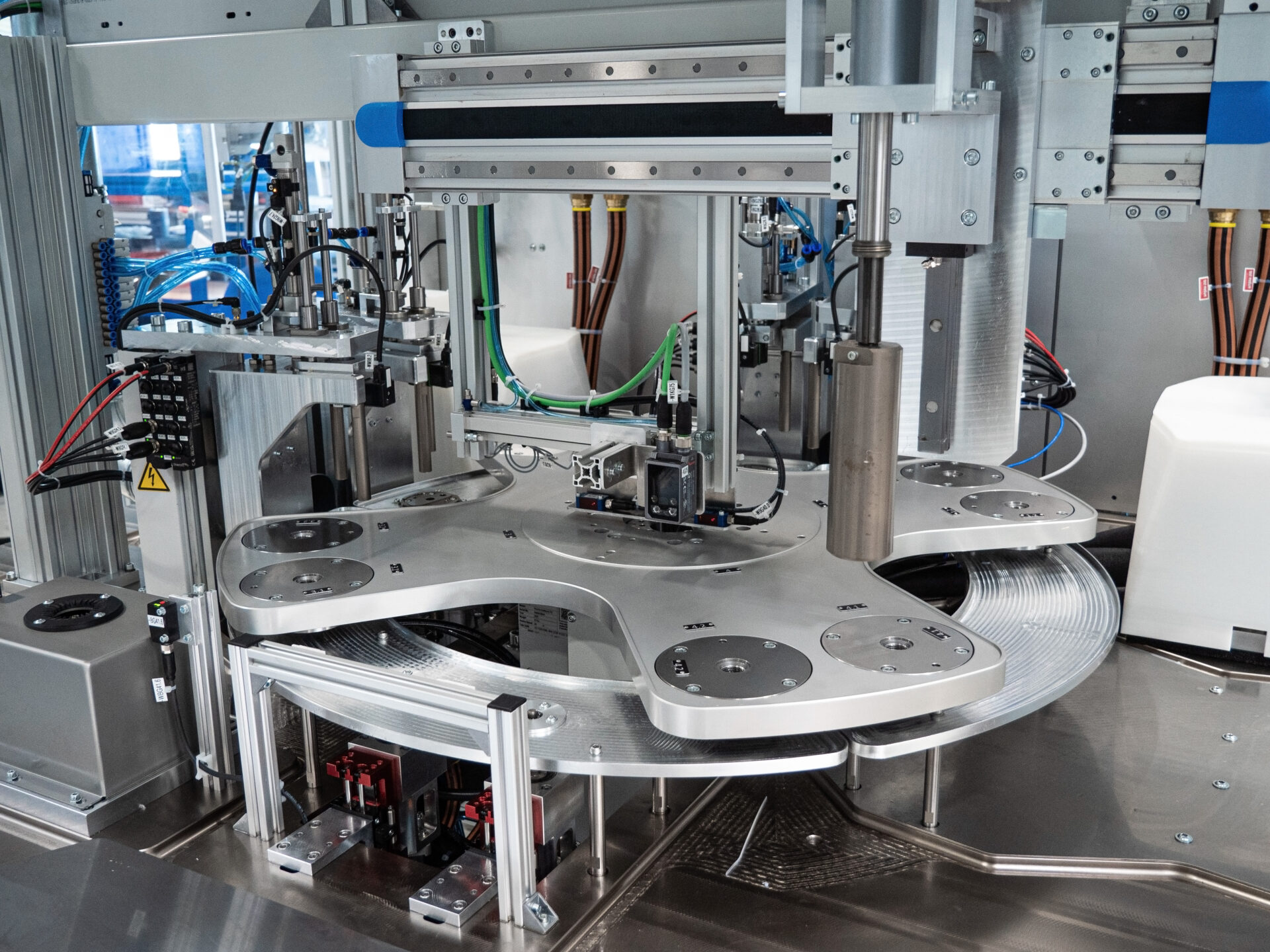

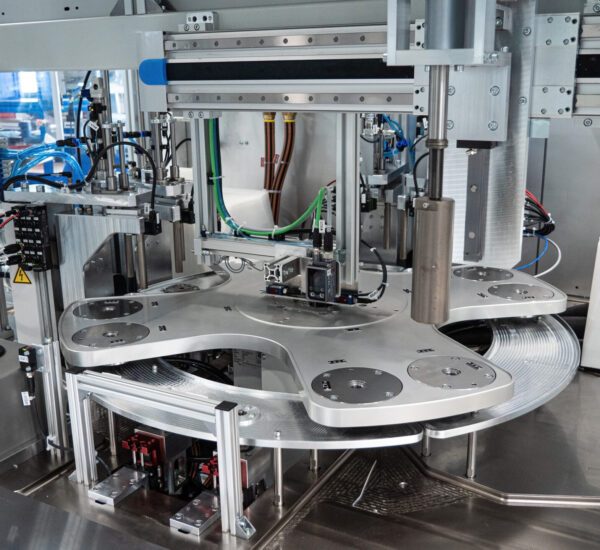

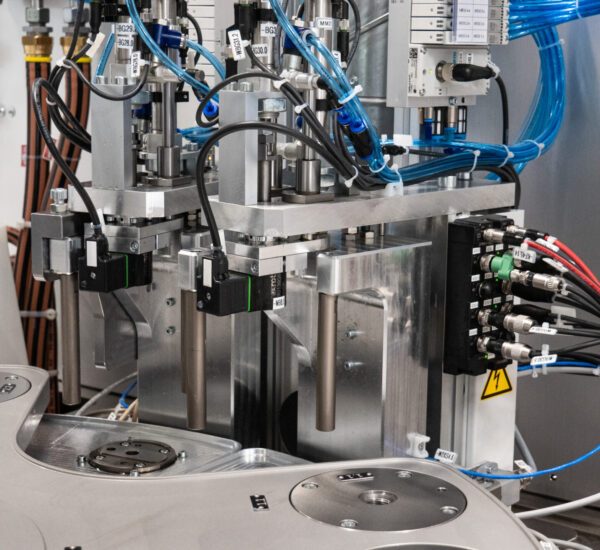

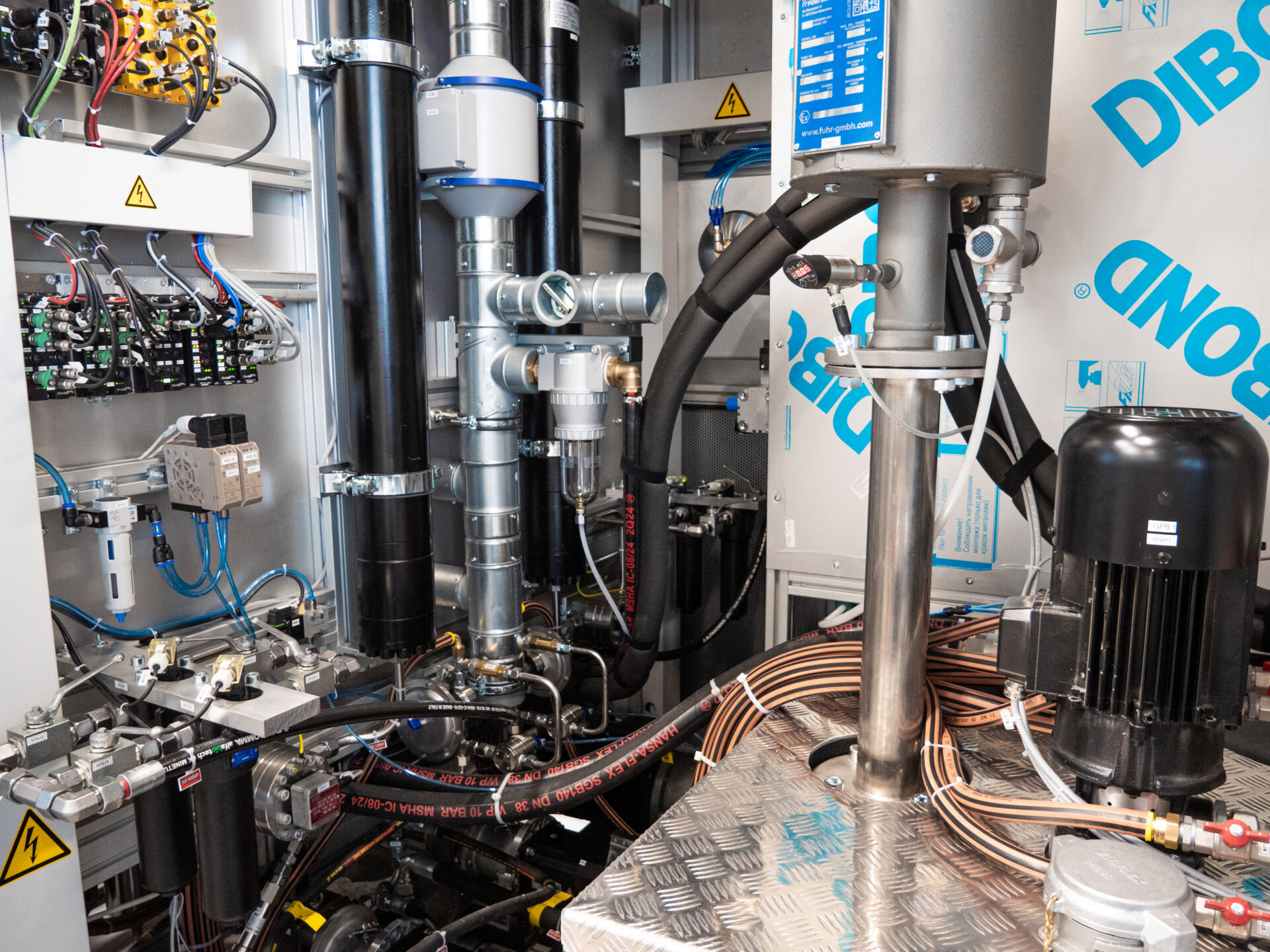

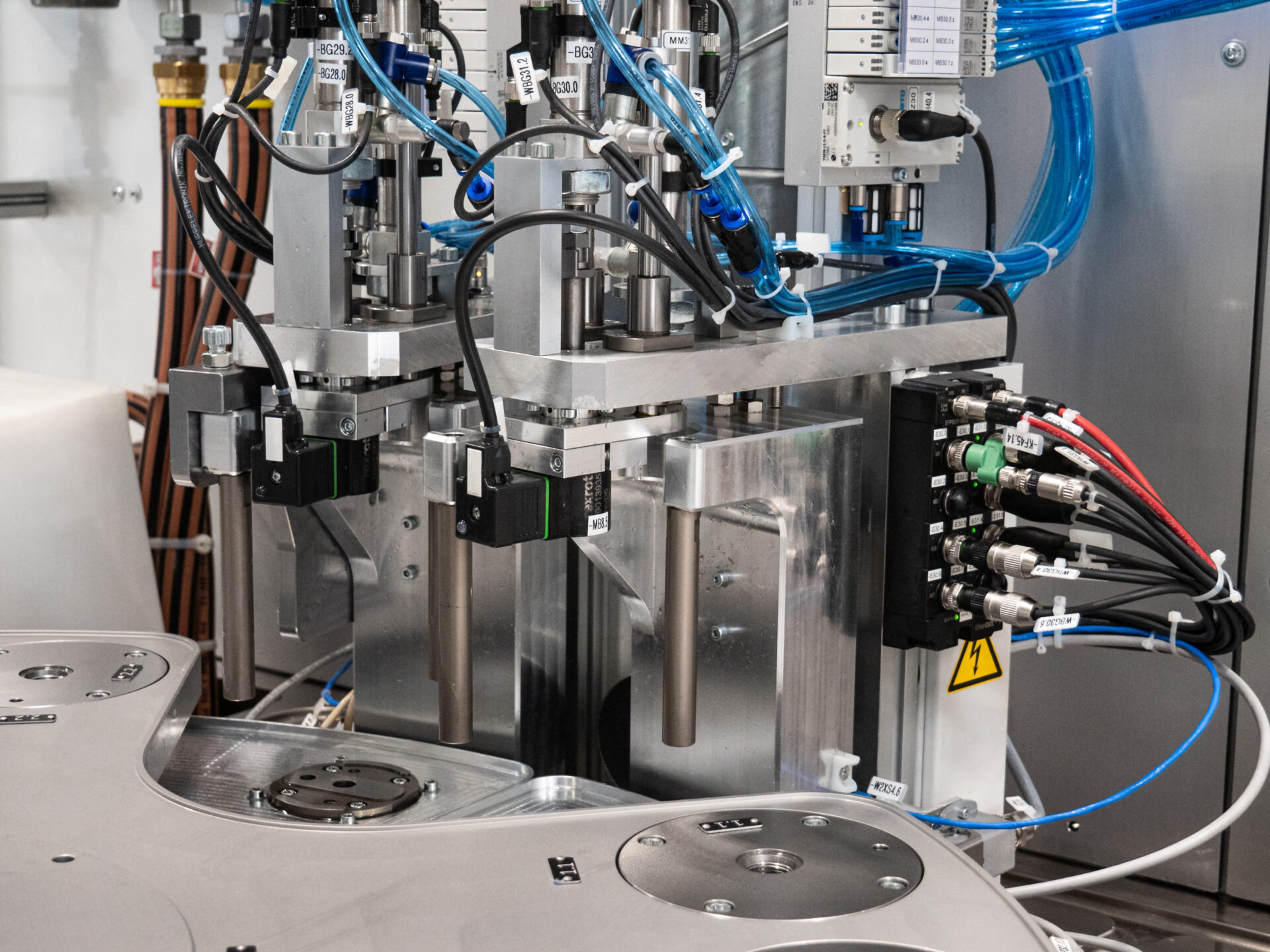

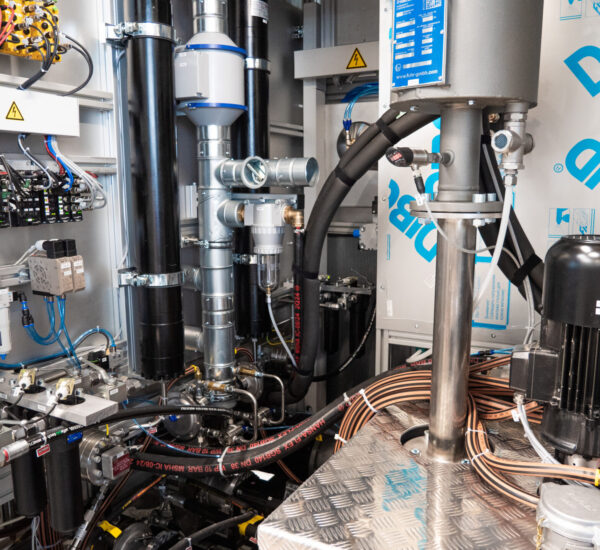

The test bench is used for functional testing of hydraulic solenoid valves. Various product families can be tested. The machine is automatically loaded by a robot, with the test specimens being supplied on a conveyor belt. After the components are inserted into the existing rotary indexing table, the test sequence begins. A test sequence consists of a switching time measurement combined with a simultaneous pressure drop measurement. In addition, the leakage flow rate is measured. The leakage
measurement is carried out at two different pressure levels.
Highlights
- Complete test bench control via PC
- User-friendly PC interface (Windows 10) for manual
operation, process parameterization, and result display - Design as an indexing table machine with dual component
holders - Integrated cooling unit
- DMC reader for traceability
- Part feeding via robot
Technical Data
- Supply pressure range: max. 400 bar
- Flow rate: max. 50 l/min
- Measuring range (switching valve): 380 bar
- Temperature: 32 ± 3 °C
- Power supply: 3 x 400 V/N/PE/50 Hz/60 ATest specimen control voltage: 12 V – 24 V
- Cycle time: single lock: 24 s / double lock: 44 s
