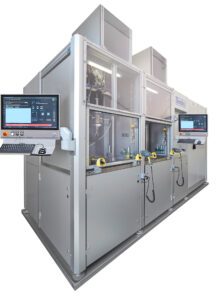

Fuel Injection Technology GDI Injector Flow and Spray Test Bench

i
i



The test bench is designed for the entire analysis of important parameters of GDI-fuel
injectors. Explosion protected components enable the operation with n-heptane
as test fluid. The bench provides following test functions: Dynamic test, static flow test,
measurement of opening and closing times, injector spray characteristic.

Technical Data

  • Dimension: 4320 x 1845 x 2359 mm (L x B x H)
  • Test fluid: n-heptane
  • Operating pressure: 40 – 500 bar
  • Flow test range: app. 1 l/min
  • Temperature: 21 +/- 1 °C

Highlights

  • Flow test station including: Downstream gravimetrical measurement system, downstream flow test circuit, shot-to-shot measurement system, measurement of injector rate signal, timing behavior and of injector opening and closing times
  • Spray test station including: Spray test chamber configured for lateral backlight inspections and bottom view inspections
  • Fuel supply system: High- and low-pressure supply, temperature regulation
  • Windows-based operating interface
  • Configurable test sequence
  • Descriptive visualization and touchscreen HMI

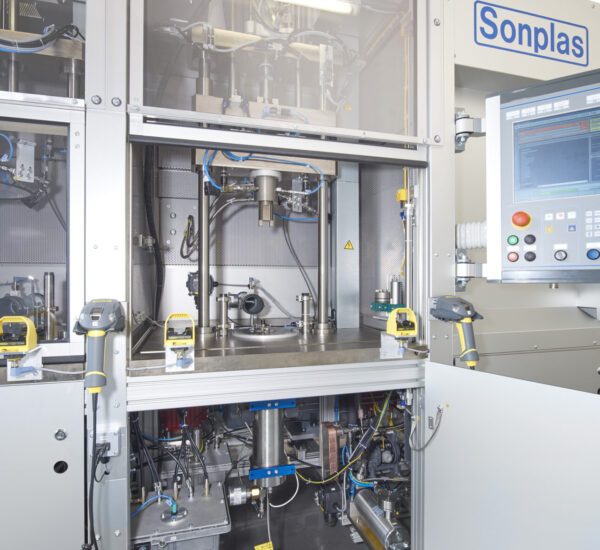

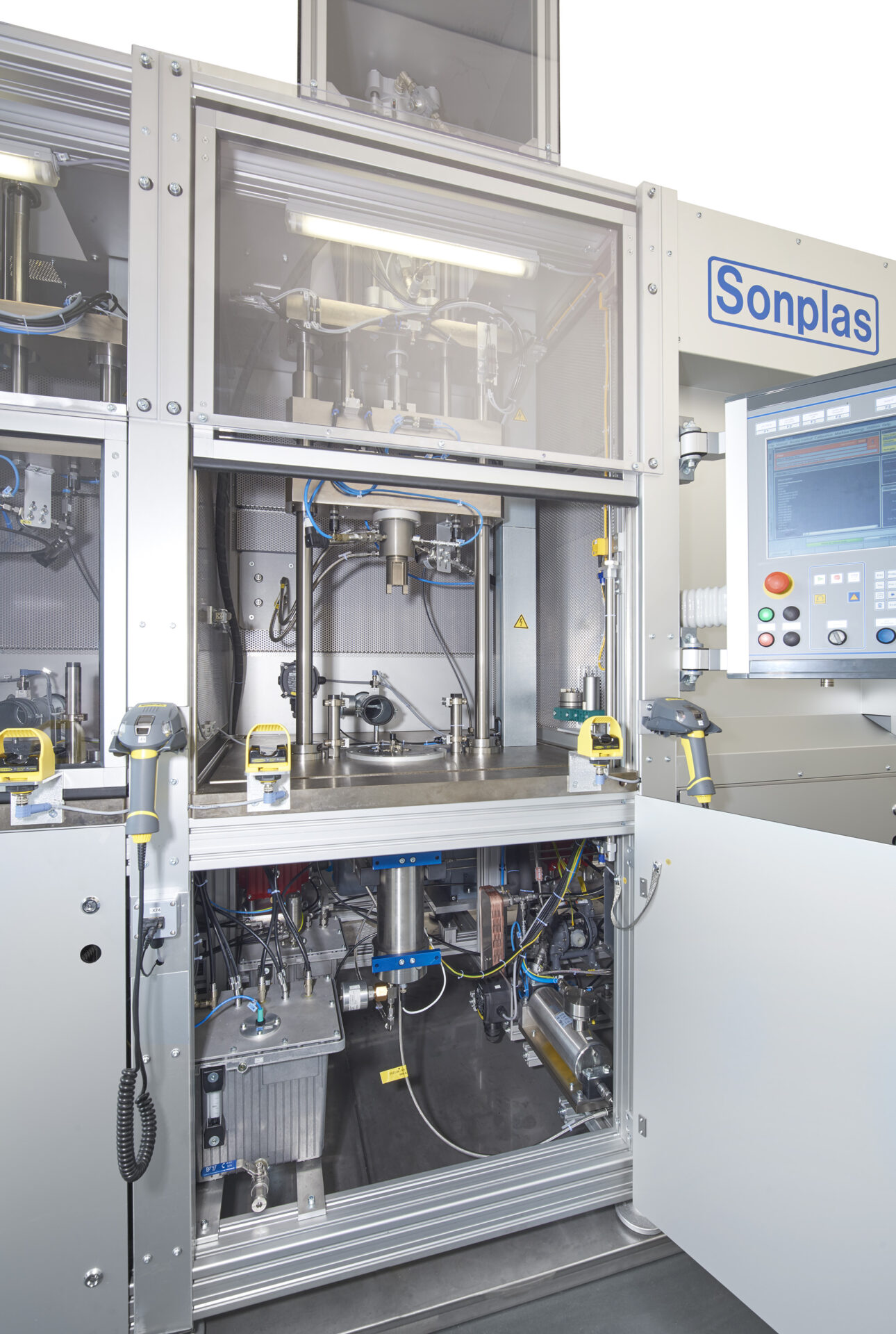

Flow test station
