Special-purpose Machinery

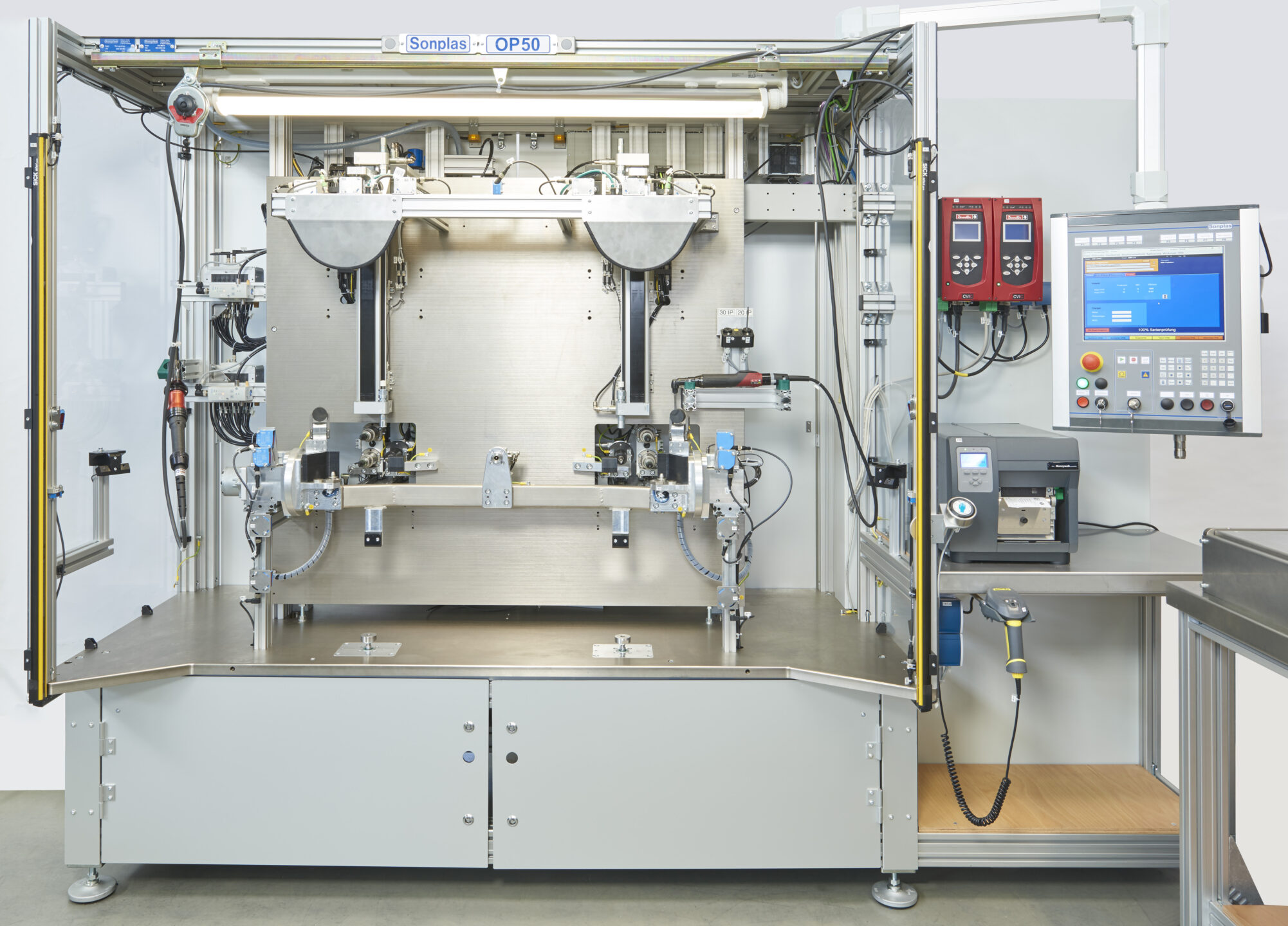

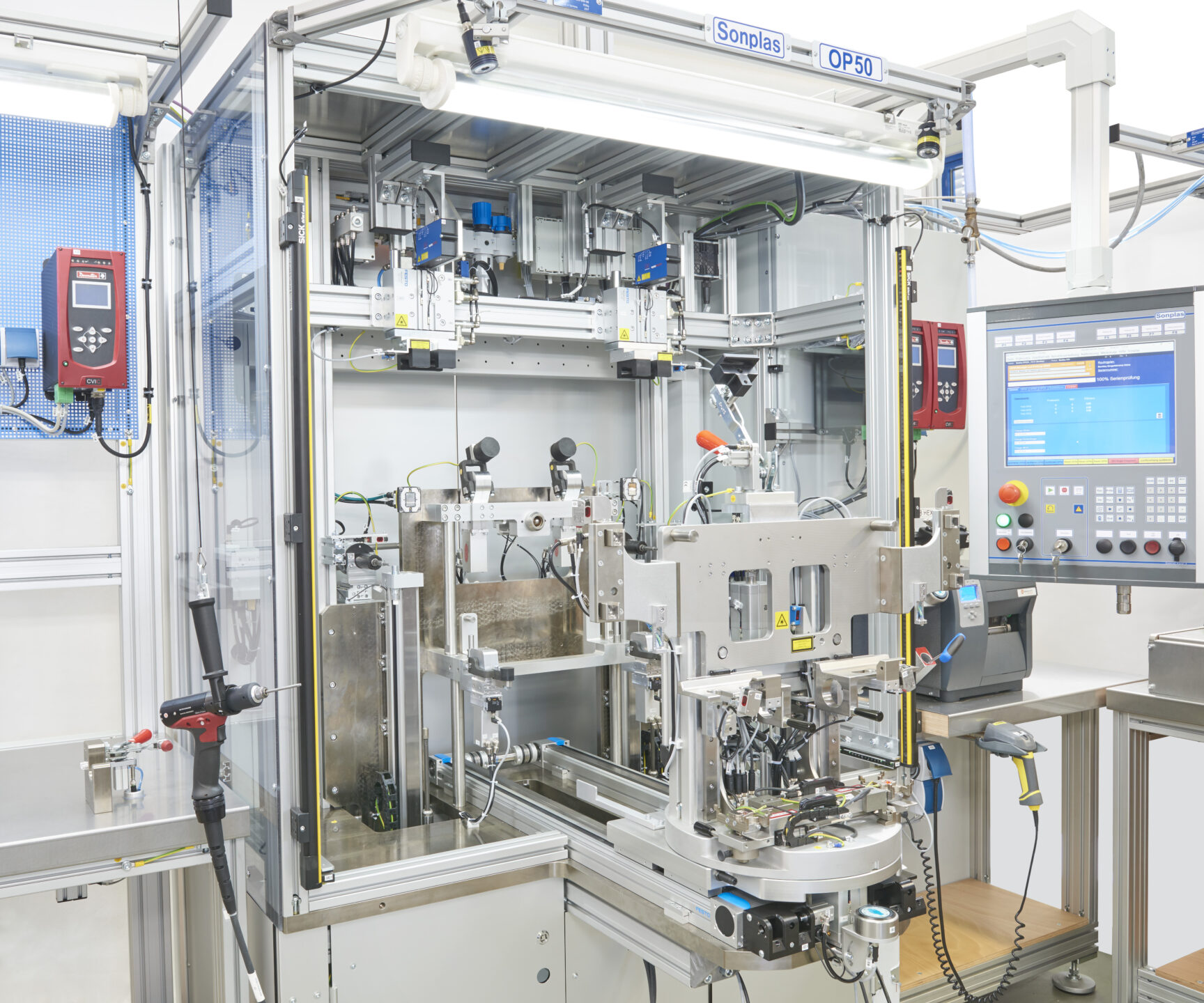

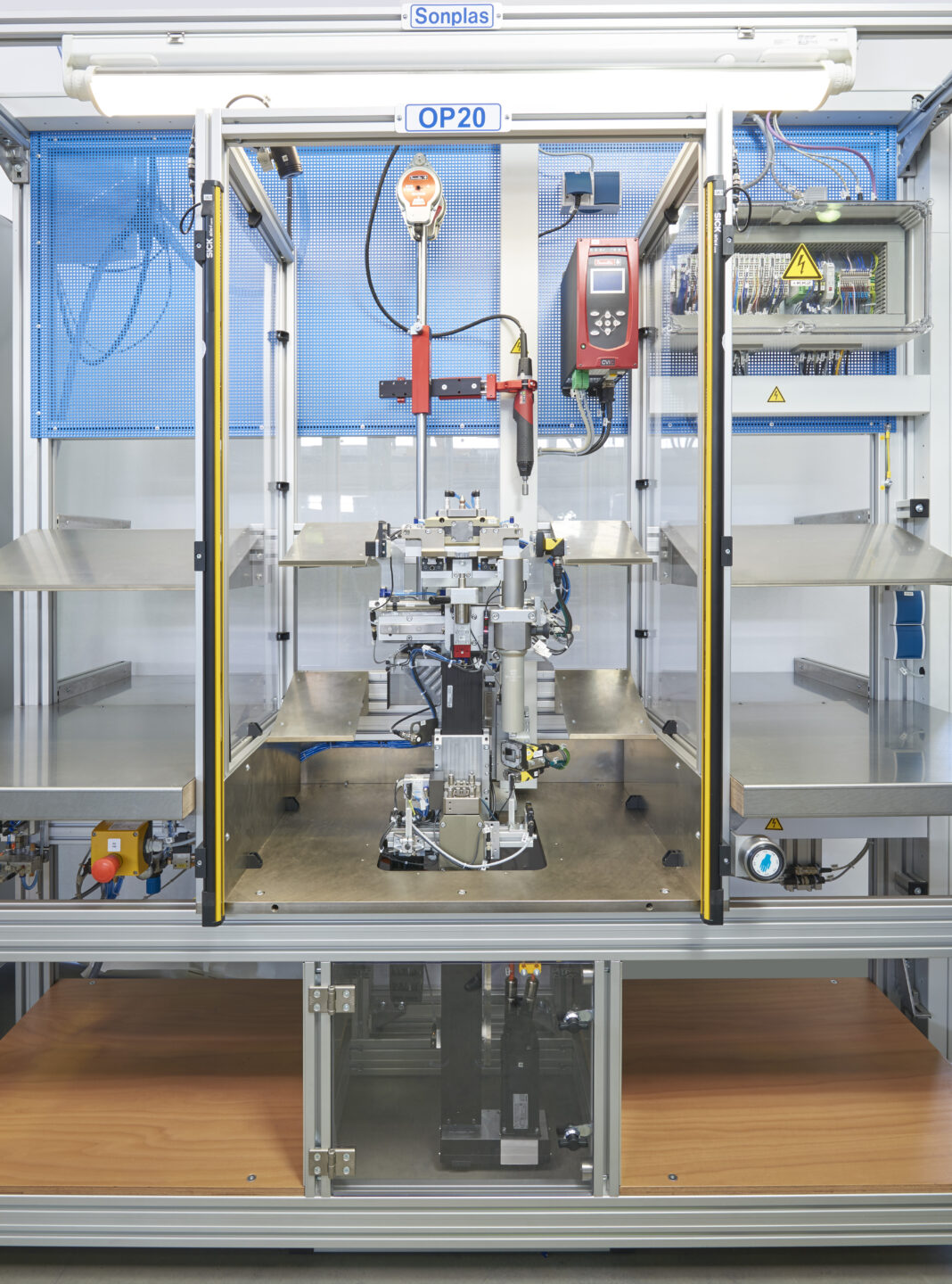

Assembly Line Rollbar system
The Assembly line Rollbar system is divided in pre- and main assembly.
The pre-assembly is used for assembly and test of the drive unit. It consists of four handwork places with manual loading and automatic test.
The…
Highlights
- Comfortable, custom-built machine interface (Windows 10)
- Touchscreen
- Server for type settings and analysis of the saved data/results
- Contact-free laser-triangulation-position measuring system
- Graphical display of characteristic curves
- Integrated force and torque sensors
- Data acquisition with analog input modules (16 bit A/D resolution)
Skip gallery slider
Assembly Line Rollbar system
Technical data
Position measuring system
- Range: 500 mm
- Linearity: +/- 0,08 % (of Range)
- Resolution: 30 µm
- Meas. frequency: 2,5 kHz
Force measuring
- Force sensor: DMS sensors (precision class 0.5)
- Move out force: 1 kN (OP50)
- Press in force: 2 kN (OP10.2)
- Press in force: 1 kN (OP20)
- Torque sensor: 20 Nm
- Power supply: 400V, 50 Hz
- Compressed air supply: at least 5,5 bar
