Power Electronics

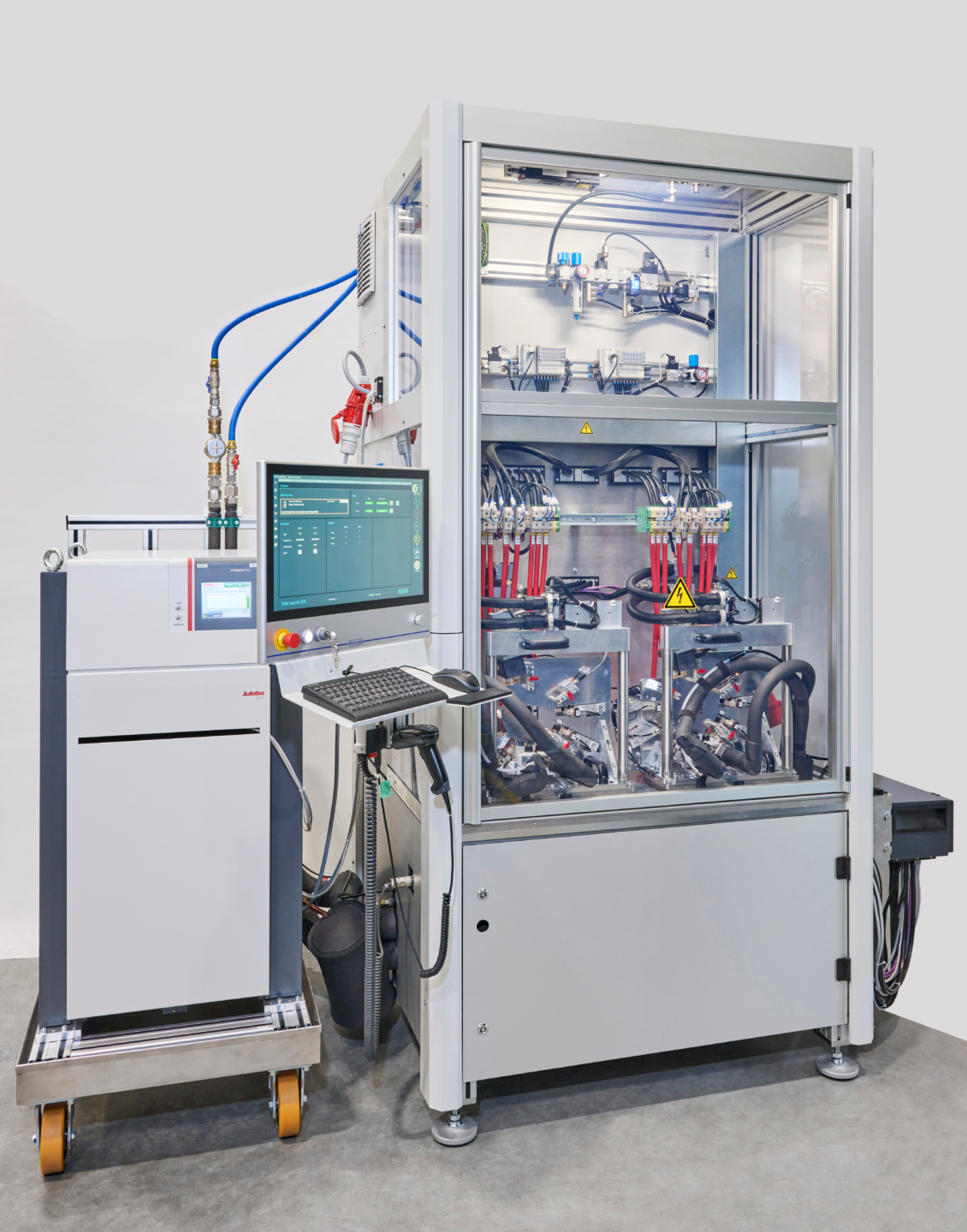

Inverter Test Bench (tempered)
The test bench is used for automatic function testing of 48V inverters. It can be set up for different components by means of interchangeable parts. The electrical and hydraulic connections can be connected either manually…
Processes
- Electrical contacting (AC, DC)
- Contacting of cooling water connections
- Tempering
- Simulation of different operating conditions
- Functional test
- Blow out
Skip gallery slider

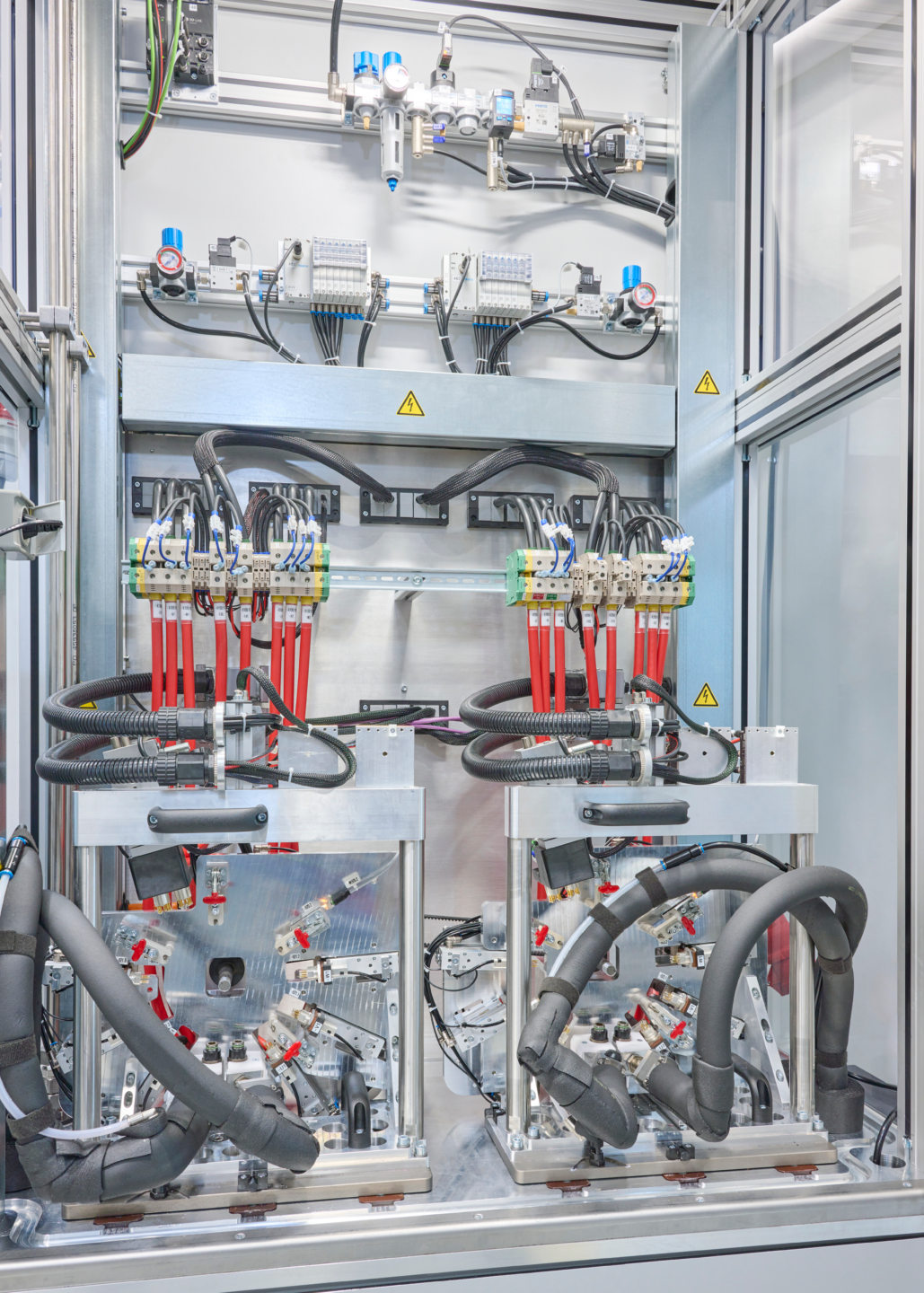

Left: Test fixtures

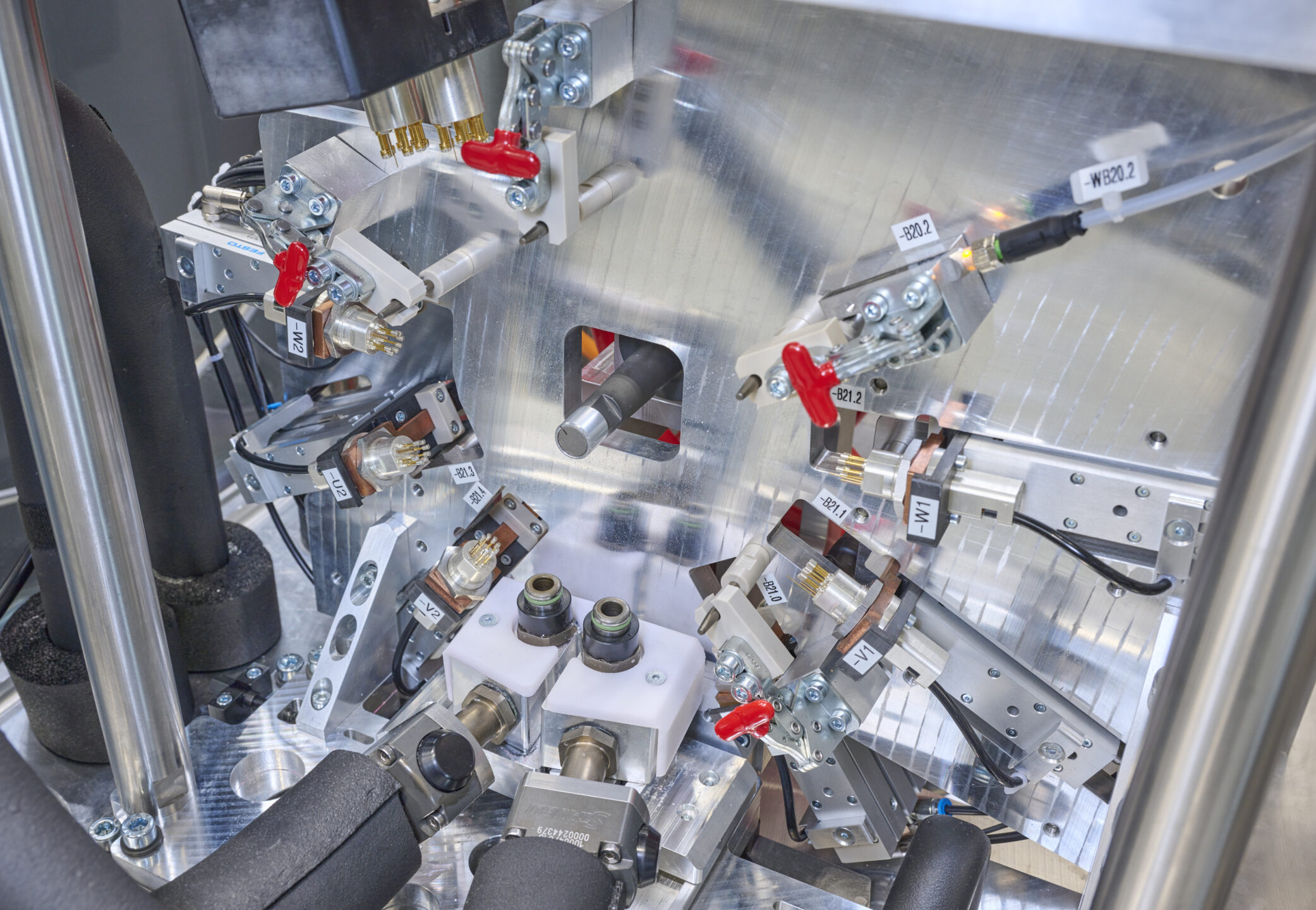

Right: Contacting units
Technical data
- Cycle time: ~180min
- Temperature control -40°C to +100°C
- >100A
- Dimensions: approx. 3m x 1,5m
