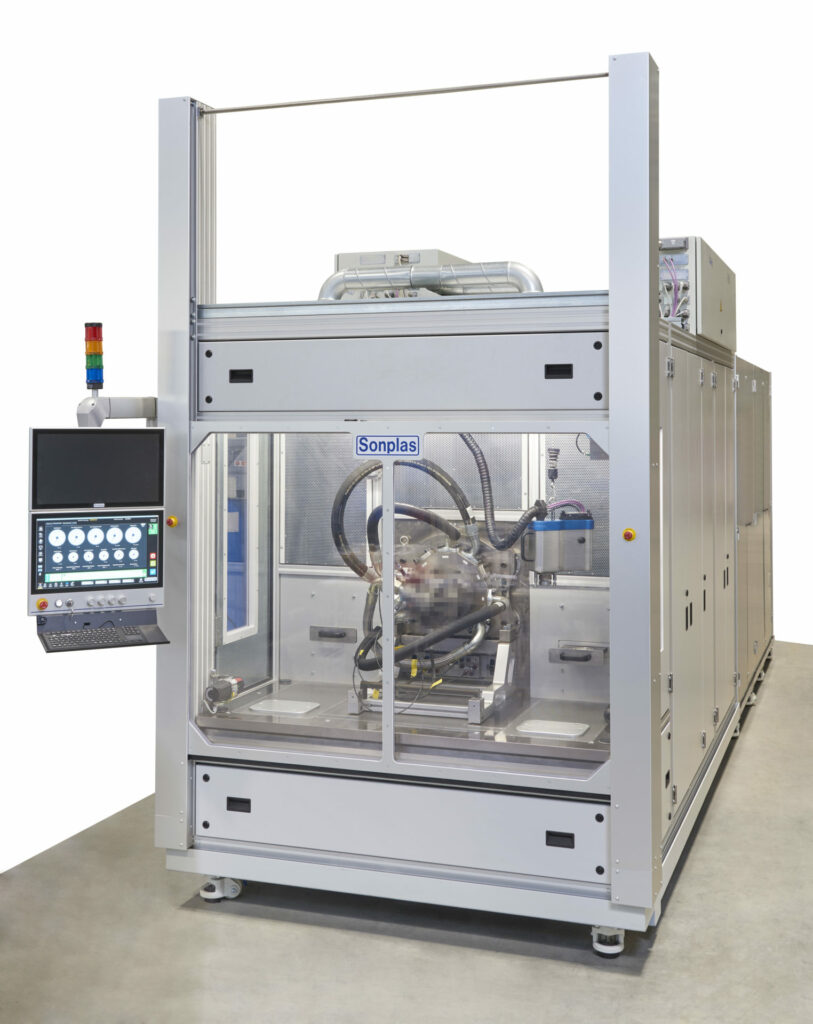

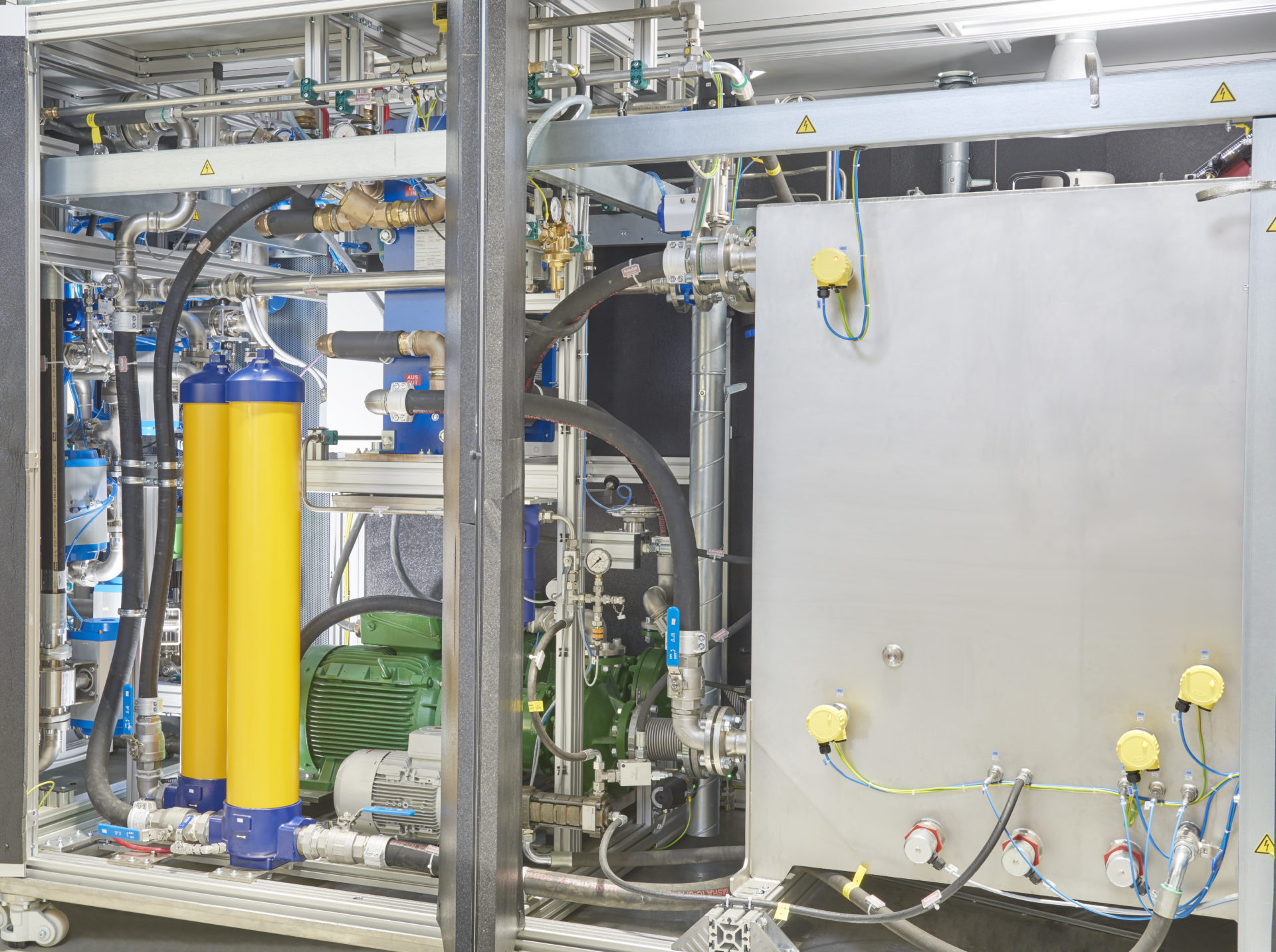

The Main Fuel Pump Test Stand is used for hydraulic testing of customer-specific fuel pumps (Main
Fuel Pump) under variable test and ambient conditions. Flow, leakage and PRV settings are measured.
The tests are carried out according to customer-specific specification documents (CMMs). Approved
pump types: CFM56-5, CFM56-7, CF6-80C2, CF6-80E, V2500-A5, PW4000-94, GE90-110/-115, CF34-8C/E,
CF34-10E, GEnx-1B/2B, Trent 700, Trent XWB, LEAP X1A/B
Highlights
- Universal testing circuit for flexible
- Testing of different pump types
- Automatic PRV setting
- Type-specific interchangeable pallets with RFID tags and transport trolleys
- patch filter
- soundproofing measures
- Precise pressure and flow control
- Universal test circuit for flexible testing of different pump types
- Automatic PRV setting
- Type-specific interchangeable pallets with RFID tags and transport trolleys
- patch filter
- soundproofing measures
- Precise pressure and flow control
technical data
- User interface in a modern and user-friendly design based on NI Labview
- Automatic test sequence with NI test bench
- Manual operation
- Test specification management via Excel files
- Signal recording of analog and digital signals
- Interlocking and monitoring of the pump limit values to prevent damage to the test specimen (in particular pressure/speed characteristics)
- Automatic pressure sensor calibration
