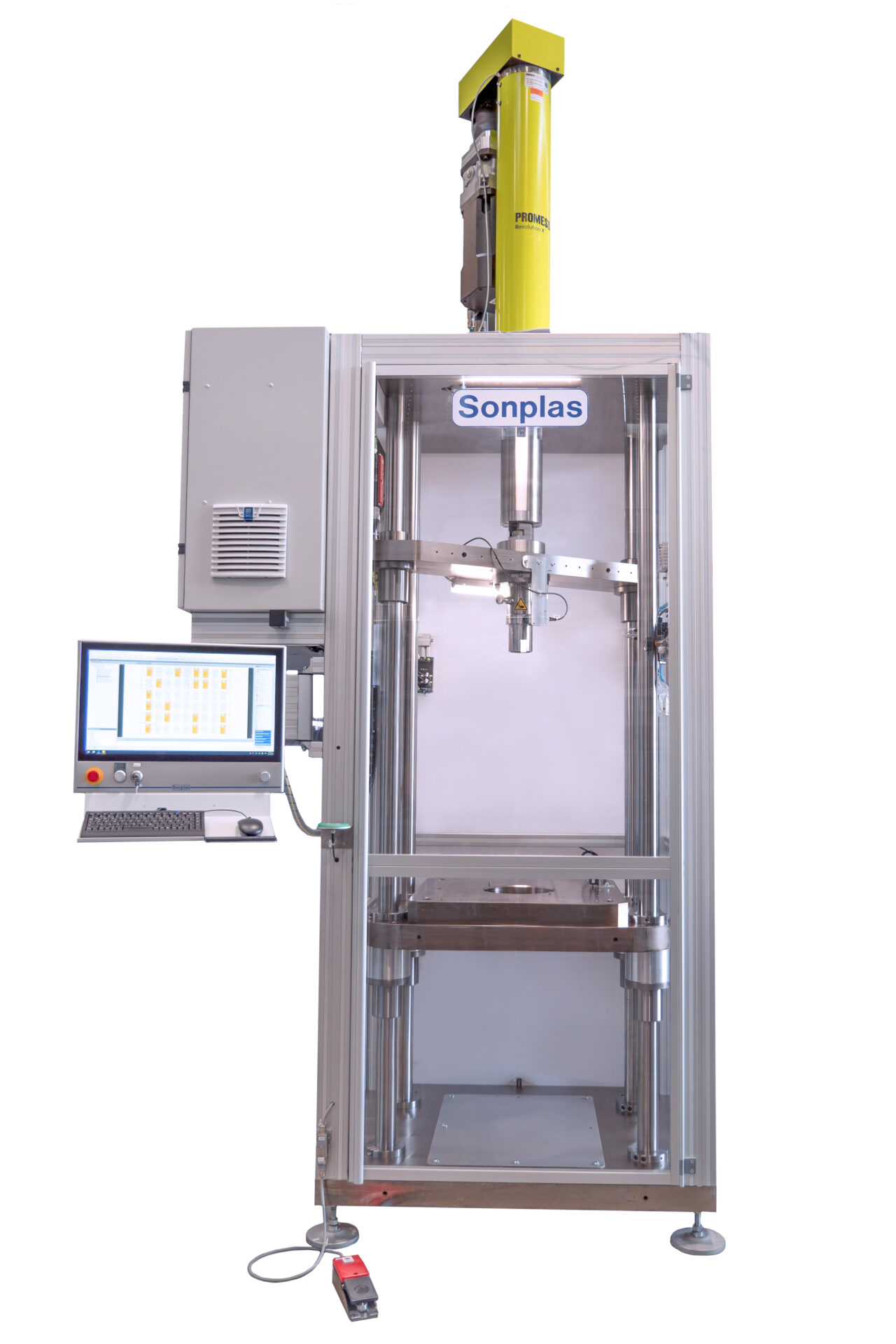

With the servo-electric press, it is possible to carry out joining processes on various products, rotors, inverters, batteries, and fuel cells, among others. With a force of up to 100 kN and a stroke of 750 mm, the press offers high flexibility, and nearly all conceivable joining operations can be realized quickly and easily. In designing the servoelectric press, we drew on our extensive experience in the field of electromobility. The press enables the economical production of small series and prototypes.
Our research and development department actively supports you in the development, optimization, and verification of your product’s production technologies. This support includes access to our in-house press for your testing needs.
-

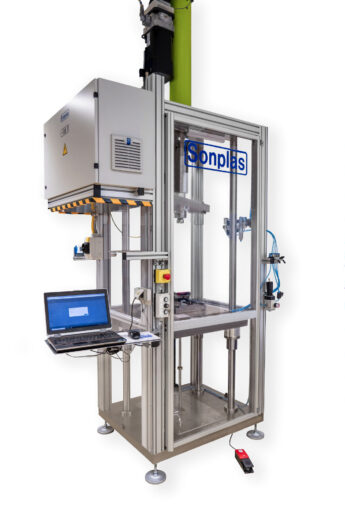

- Press with customers´ laptop
-
- Advanced option with Sonplas computer and software
Highlights
- Self-commissioning by customers (Plug and Play)
- Adjustment of the support plate is supported by the press
- Extension of the press drive after transport is supported by
the press - Integration into production lines is possible
- Operation with the own computer (no external hardware
required) or Sonplas computer
Technical data
- Force variants: 30, 60, 100 kN
- Press stroke: 750 mm
- Max. component size: approx. 675x675x1500 mm (LxWxH)
- Modern web interface application
- Flexible automatic operation and uninterrupted switching to special operating modes:
• SOS – Safe operating stop
(e.g., for bolting under load)
• SLS – Safely limited speed
(e.g., for teaching) - Dimensions:
• approx. 1050×1500 mm (LxW)
• 3725 mm (H)
• 2750 mm (H) with reduction in stroke/component size
