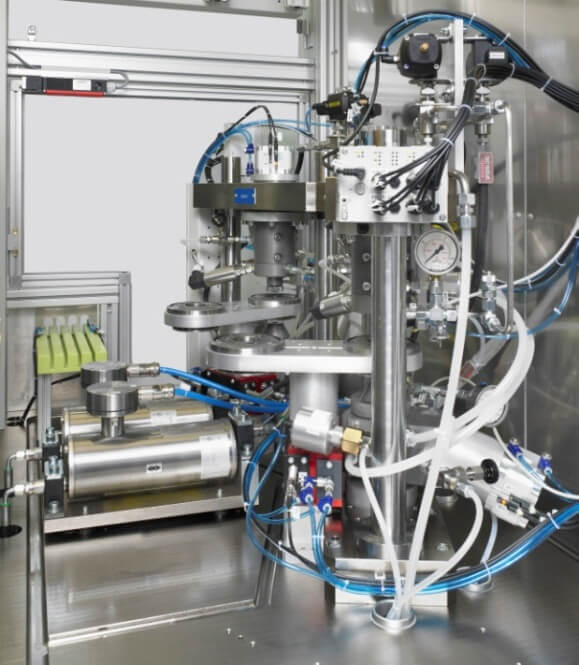

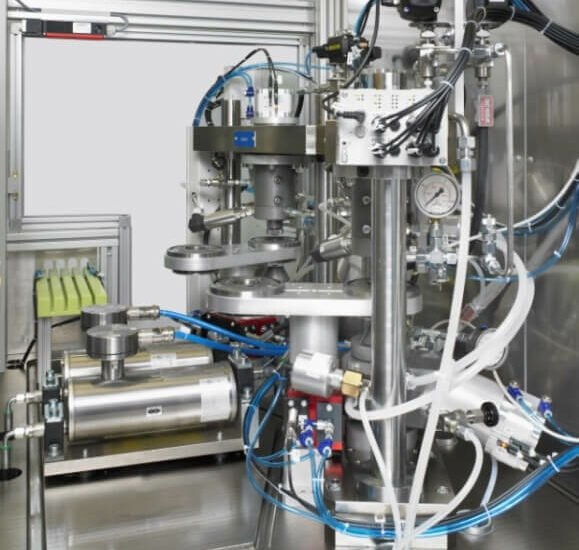

The test rig is designed for the determination of the static flow of diesel injection nozzles including matched needles.
Fixed or variable needle lift is possible.
Highlights
- Change over parts for different nozzle types
- Exact pressure regulation
- Exact test fuel temperature regulation
- High-precision needle lift adjustment
- Automatic PC control
- Comfortable software interface based on MS Windows for automatic operation and process parameterization
- Graphic display of all analogue signals
- HMI with touchscreen
Technical Data
- Pressure range: up to 140 bar
- Flow: up to 2.5 l/min
- Test oil temperature: 40°C +/-2 °C
- Needle lift range: fixed or variable in a range of 1mm
