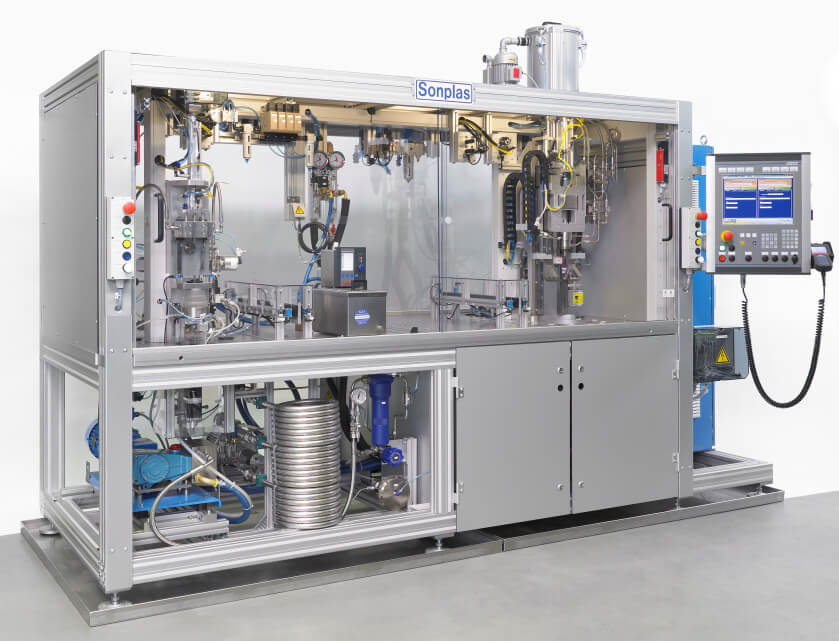

The GDI injector laboratory test bench for injectors consists of 2 stations:
- Spray test: Optical measurement of the spray angle
- Wet tightness: Leakage measurement of the injector in closed condition
Designed as a laboratory test bench with high flexibility, e.g. for product development.
Highlights
Wet tightness:
- Measuring range in the µl range
- Self-venting system
Spray test:
- Measurement of different spray angles due to rotatable chamber
- High flexibility due to variable USD and image acquisition settings
- Integrated flow measurement system
Technical data
- Test pressure range: 5 – 300 bar
- Pressure control: ±0.1 bar
- Flow measurement range: 0.2 – 16 [g/s]
- Test temperature: 22°C
- Temperature control: ±1°C (typ. 0.5°C)
