Fully automatic assembly of an inlet valve for a high-pressure petrol pump with the following sub-stations:

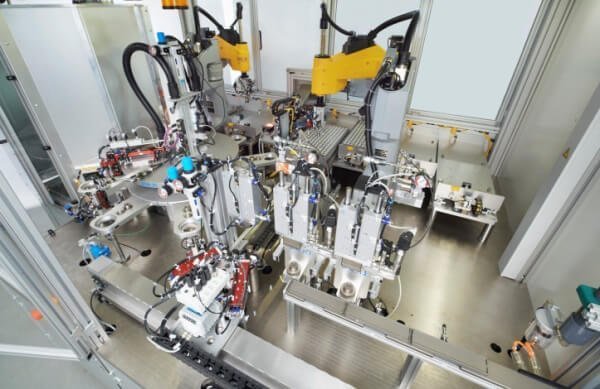

- Loading robot for individual components
- Component joining station with camera check
- Laser welding station
- Stroke test station
- Leakage test stations
- Unloading robot
Highlights
- Fully automatic
- Cycle time: 8 sec
- Convenient user software in Windows 7
Technical data
- 8 s cycle time
- 1 laser welding chamber
- 2 loading robots

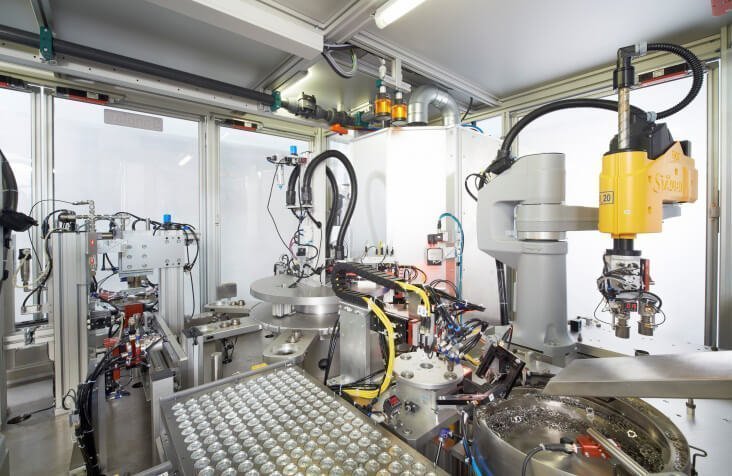

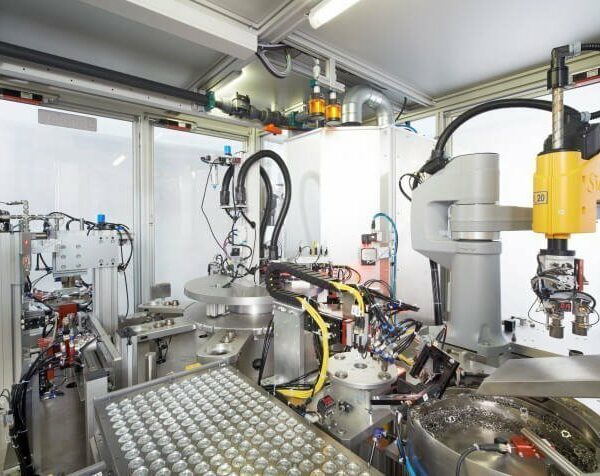

- Drawers and vibrating pots for loading the raw material
- 2 drawers for unloading
- Operator interface in Windows 7
