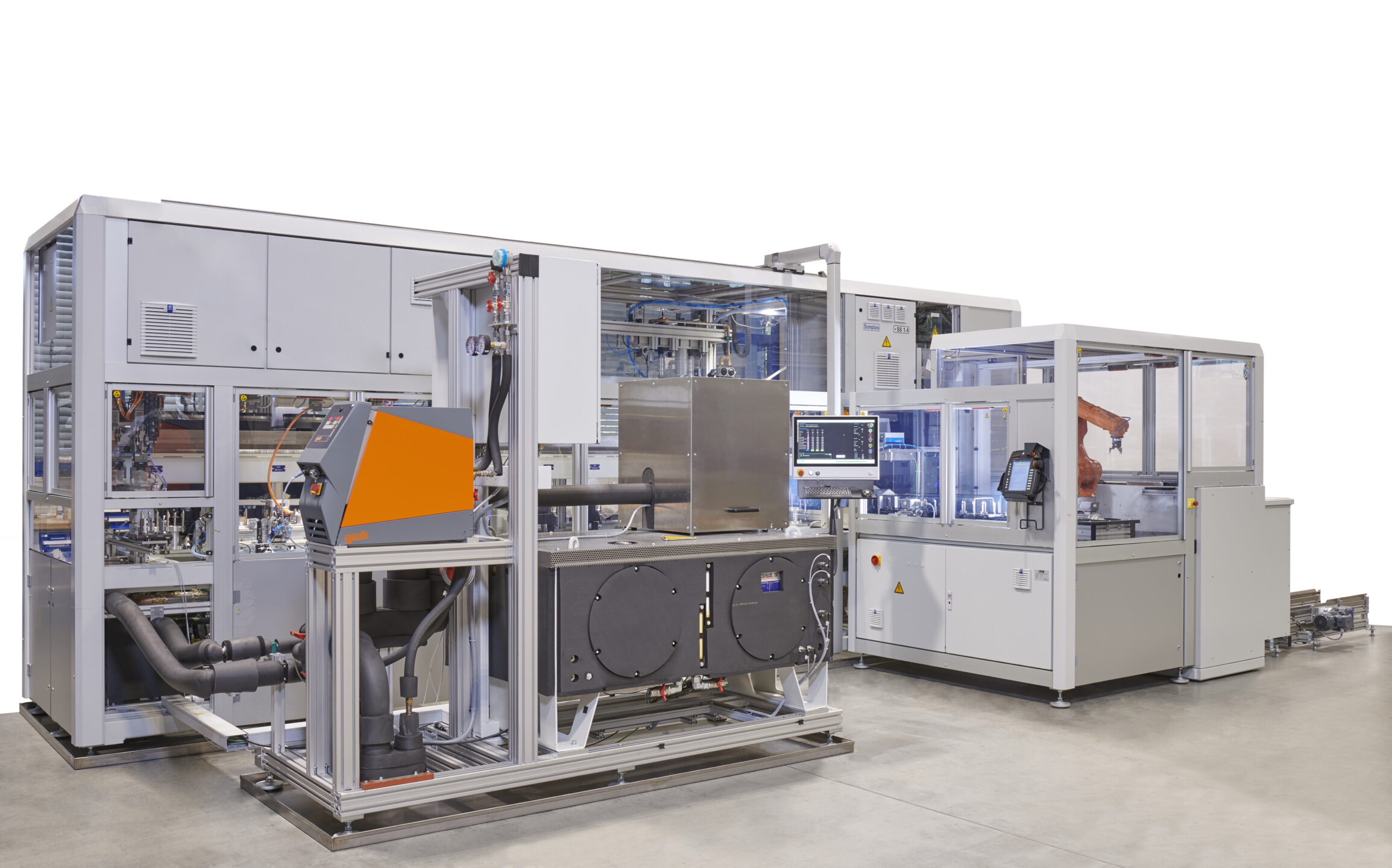

Test Bench Design
Dynamic EOL test for electrical driven Oil pumps
Hydraulic end-of-line testing of an electric oil pump for transmissions for cooling and oil pressure generation. The test bench is equipped with several stations to reduce the machine cycle to a minimum.
The test specimens are…
Highlights
- Comfortable PC user interface
- Variable current signal generation for controlling the test object
- Database-based flexible test plan specification and storage of measurement results
- Sonplas report tool for statistical analysis and export of measured values
- Automatic logging and storage of all test parameters and measurement signals, which allows subsequent checking of the evaluation and results
- Subsequent re-evaluation of all test data if required
- Cycle time < 12sec
Skip gallery slider

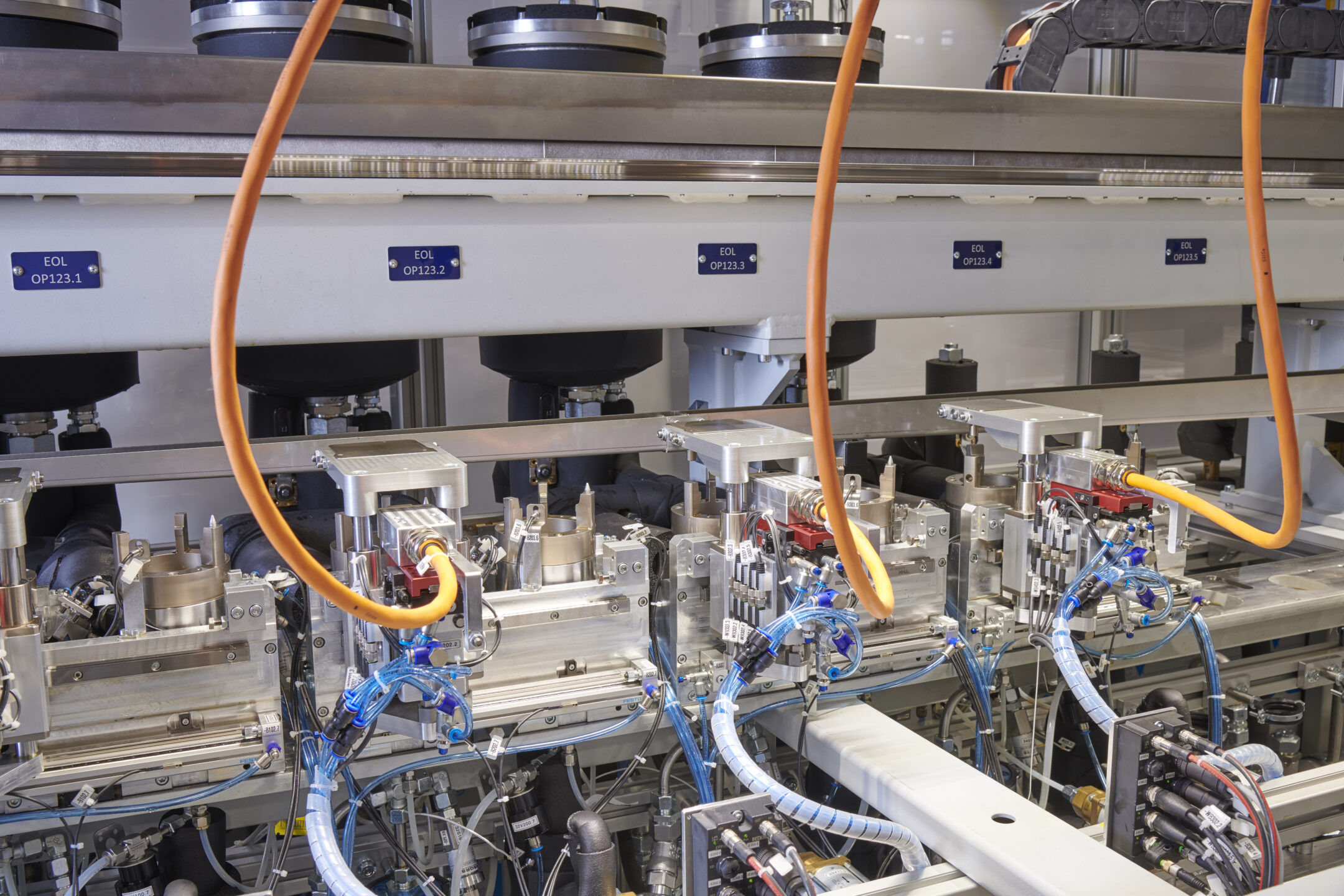

Individual test station for testing customer components
Technical data
- Test medium: Pentosin
- Pressure supply: 1–20 bar
- Flow measurement: 0.03–40,000 ml/min
- Test temperature: 40–100°C
- Compressed air supply: > 6 bar
- Power supply: 3 ~ 400 V / 50 Hz (3P / N / PE)
