Test Bench Design

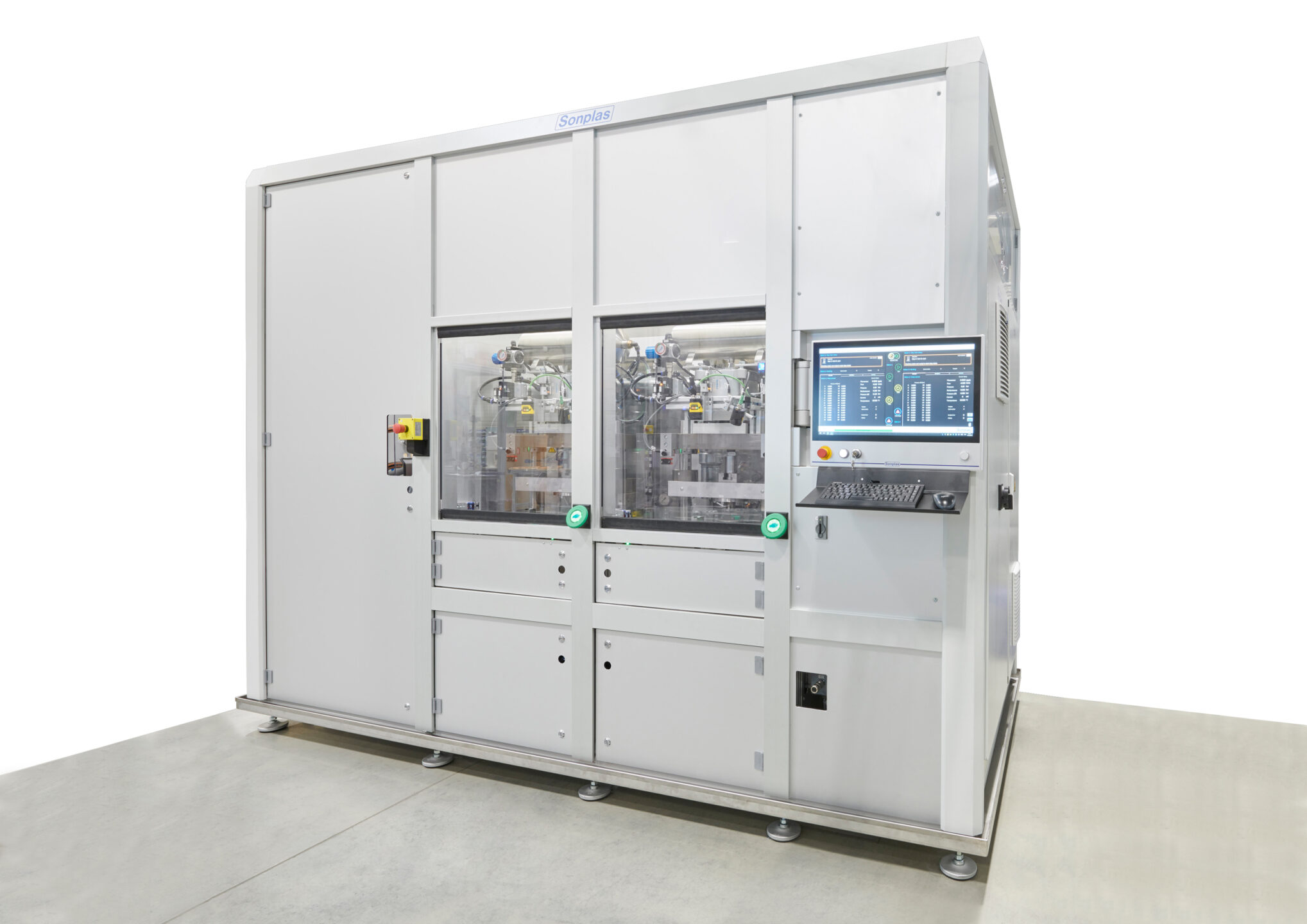

Hydraulic Flow test of Shock absorber Assemblies
For high output of good parts, subassemblies are checked for flow. This allows the production to be monitored and bad parts detected early. The test bench is equipped with a double station and a reversible…
Highlights
- Comfortable PC user interface
- Variable current signal generation for controlling the test object
- Database-based flexible test plan specification and storage of the measurement results
- Automatic logging and saving of all test parameters and measurement signals, which allows a subsequent verification of the evaluation and results
- Postponed re-evaluation of all test data as needed
- Cycle time less than 30sec
Technical data
- Test medium: Pentosin
- Pressure supply: 20 – 160bar
- Flow measurement: 500 – 40.000ml/min
- Test temperature: 20°C
