Production End-of-Line Test Bench GDI Injector
The Production Line GDI Injectors is an automatic system for calibration and test of high-pressure solenoid fuel injectors. The operation starts with loading the injector by means of a robot into a rotary dial. After…
Highlights
- Scalable layout: the production capacity can be easily adjusted according to customer requirements.
- Fully traceable production data handling with SonDaSys-Testplan
- Fully traceable result data storage and production control with SonDaSys-Report
- Integrated Spray vision inspections software (SonVision) – a Sonplas developed software package
- Injector driver board from Sonplas (Universal-Solenoid-Driver) – a wide range of current profiles can be generated (up to three independent voltage supplies are possible).
- Automatic type adjustment
- Automatic „Mastering“ – a possibility to control the production quality online
- Uplink to customers database
- Editable scrap part sorting
- Compact design
Skip gallery slider

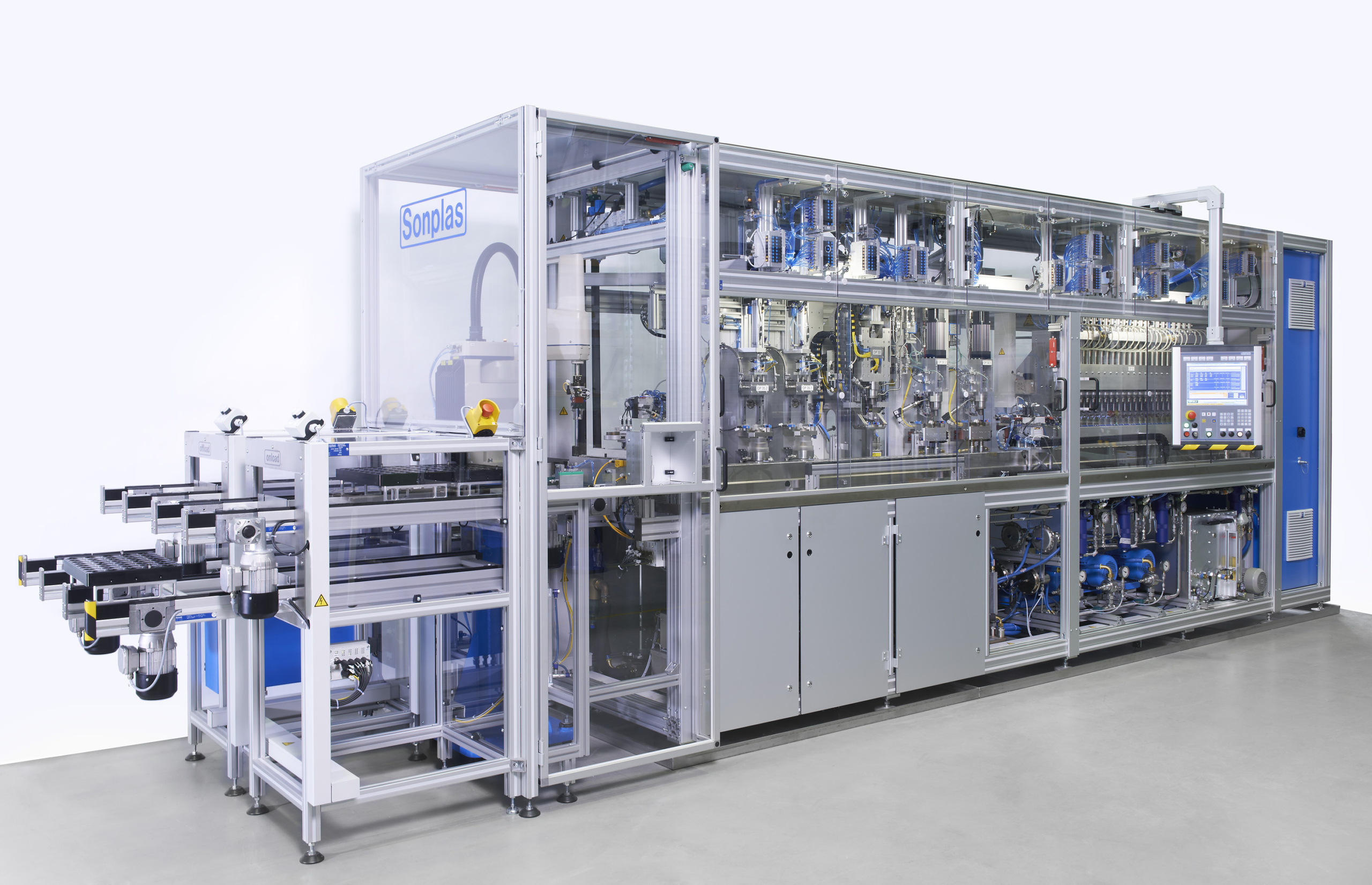

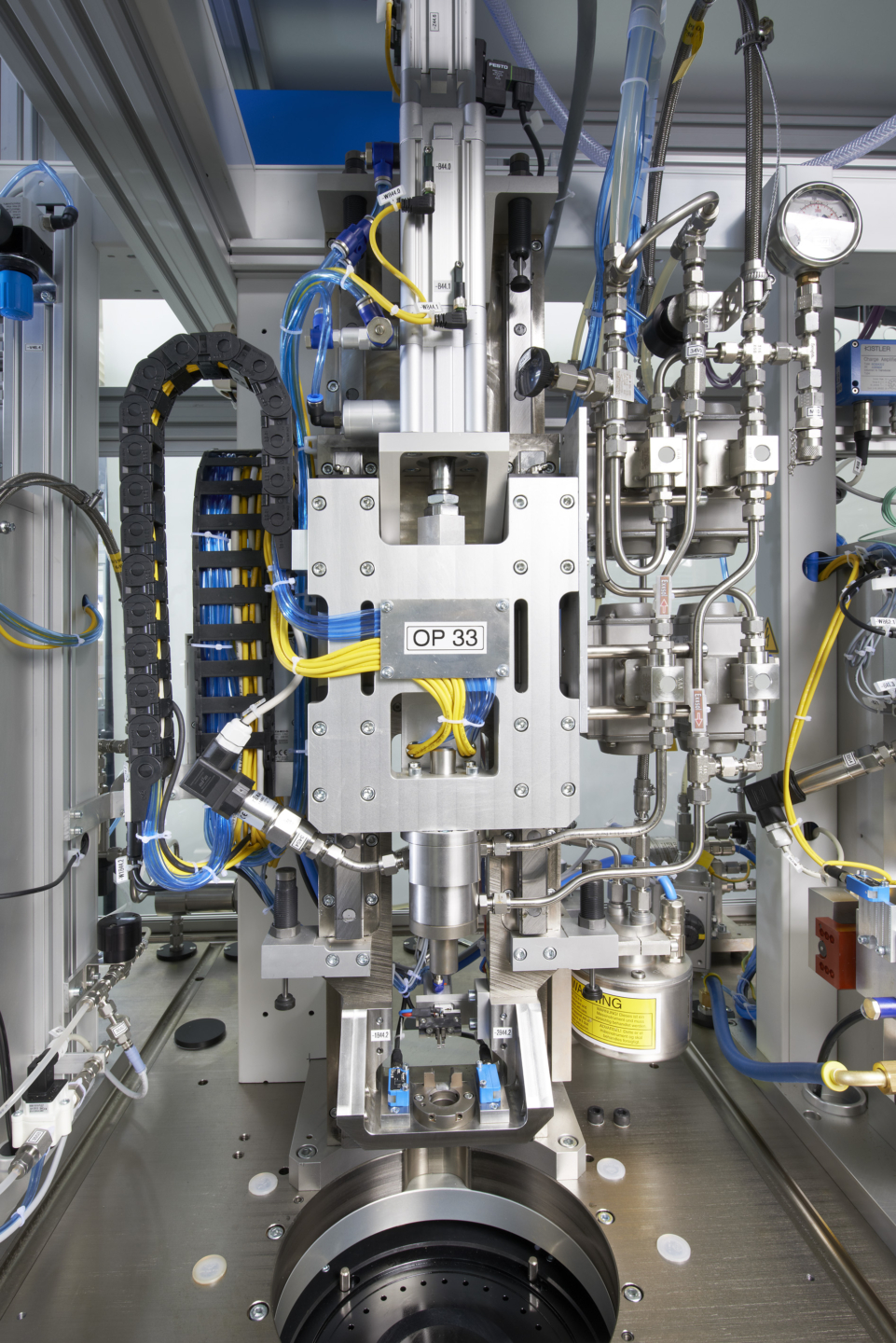

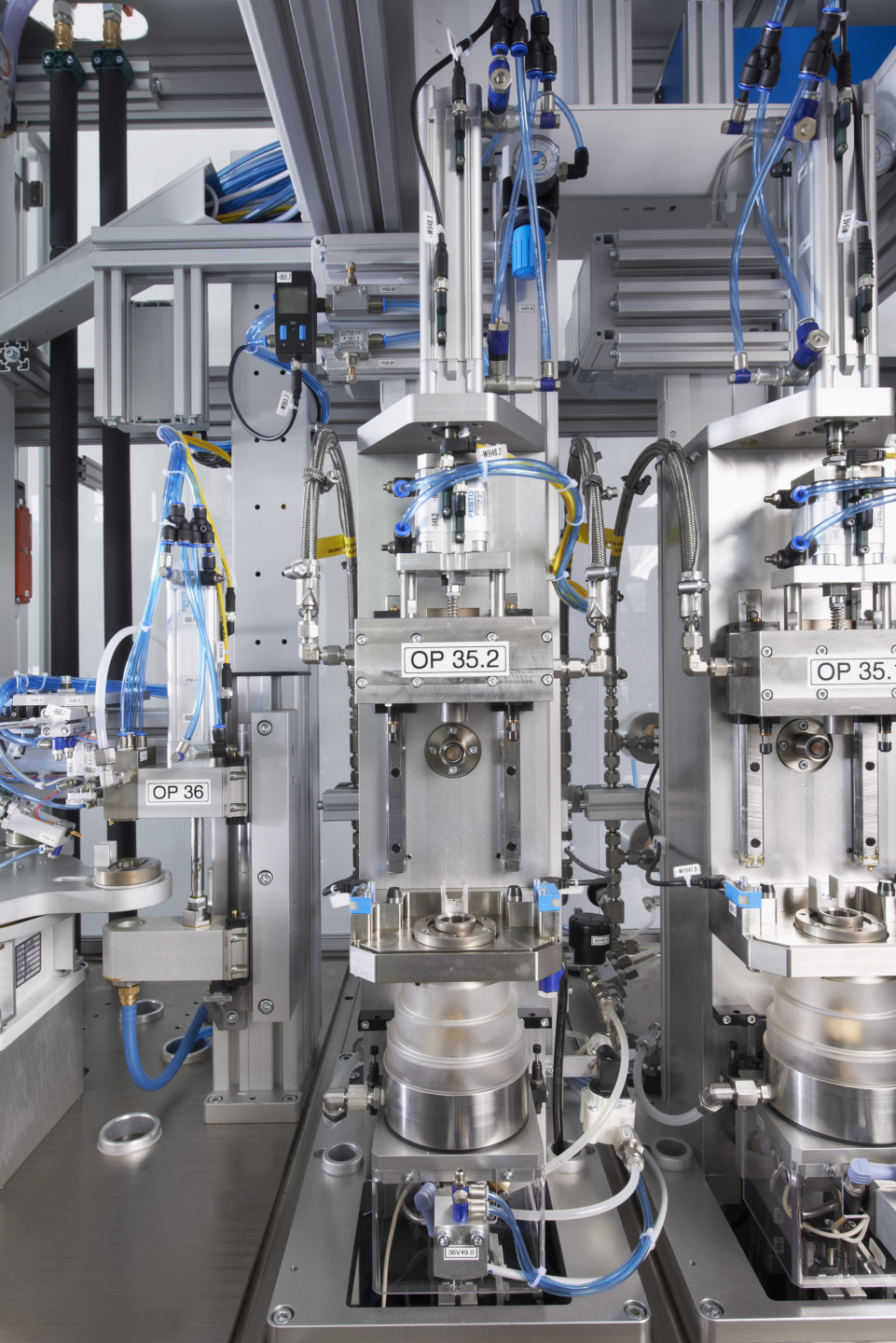

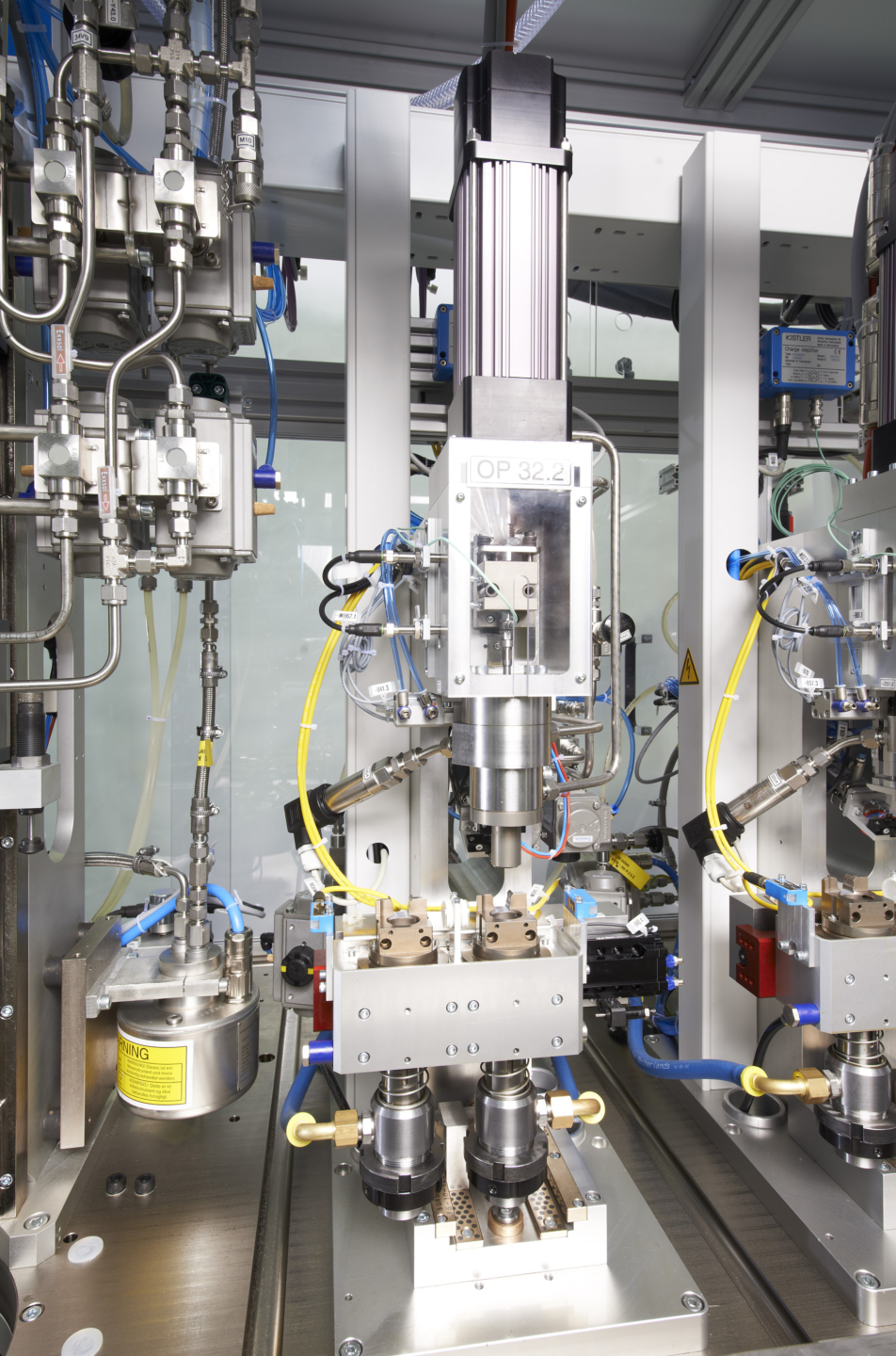

Production EOL test bench by Sonplas
Technical data
General:
- Max. run-in time per unit: < 320 sec.
- Production rate: 1.1 mio./ year (15 sec. cycle time)
- Standalone production: < 40 min.
Flow test:
- Pressure range: 20 – 300 bar
- Flow range: 0.3 – 16.0 g/s
- Flow accuracy: 0.1 %
Spray test:
- Pressure range: 20 – 300 bar
- Vision software: SonVision inlcuding Spray package
Leak test:
- Pressure range: 20 – 200 bar
- Leak rate: < 10 µl/min
